Self installed device FTx

FTx fleet tracker dongle user manual

IMPORTANT INFORMATION:

All the associated (additional) equipment such as computers, batteries, sensors, etc. shall meet the requirements of standard EN609501.

Do not disassemble the device. If the enclosure of the device is damaged, or the insulation of the wires is damaged, disconnect the power supply cables from the power supply source first.

All wireless data transferring equipment produces interference that may affect other devices placed nearby.

The device can be installed or dismounted only by qualified personnel!

The device must be firmly fastened in a predefined location. The predefined location is described in the installation instructions.

The configuration must be performed using a 2nd safety class computer (with an autonomic power supply).

Make sure that the device is installed in a location where it will not be subjected to harsh environmental conditions for extended periods.

Any installation and/or handling during a lightning storm is prohibited.

Caution! If an incorrect type of battery is used for replacement, there is a high explosion risk. Dispose of used batteries according to the environmental requirements.

For configuration use cables that were purchased from Ruptela. Ruptela is not responsible for any harm or damage caused while using the wrong cables.

Install the device in a restricted access location, not accessible or visible to the driver.

This crossed-out wheelie bin symbol means that waste equipment should not be disposed of with your other household waste product must be taken to separate collection points at the product's end-of-life.

Introduction

The FTx is a Plug&Play self-install advanced GPS tracking device which is used for Fleet monitoring and has the possibility to read OBDII parameters. More technical data you will find in the datasheet brochure.

Check FTx supported vehicle list.

Technical features

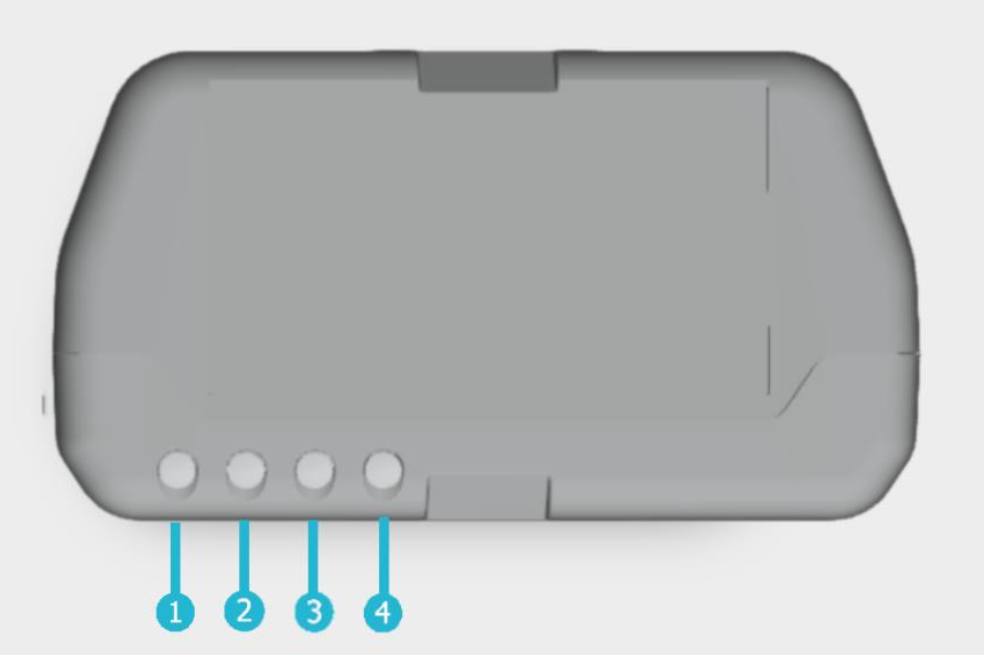

Indication LED Patterns


LED No	Color	Description	Pattern
1	Red	Power / Ignition status	Always ON - Custom/Virtual ignition ON and power supply is provided Blinks for 0.5 second in 1 second - Ignition OFF and power supply is provided Blinks for 0.1 second in 1 second - Working from battery, despite of the ignition status Blinks for 0.1 second in 5 seconds - Sleep mode (if sleeping when powered on from battery - indicate only sleep mode)
2	Orange	Network connectivity status	Always ON - The link with the server is open Blinks once in 4 seconds - Connected to network and internet Blinks once in 1 second - Connected to network, no internet Blinks once in 0.2 seconds - No signal
3	Green	GNSS / BLE 5.1	Always ON, short turn off once every 1 second - GNSS fix acquired / BLE 5.1 paired and connected Always ON, short turn off once every 0.4 second- GNSS fix not acquired / BLE 5.1 paired and connected Blinks once every 1 second - GNSS fix acquired / BLE 5.1 not connected Blinks once every 0.4 second - GNSS fix not acquired / BLE 5.1 not connected

Installation

The FTx device is connected to vehicle’s OBDII port.
Locate the OBDII port of your vehicle.

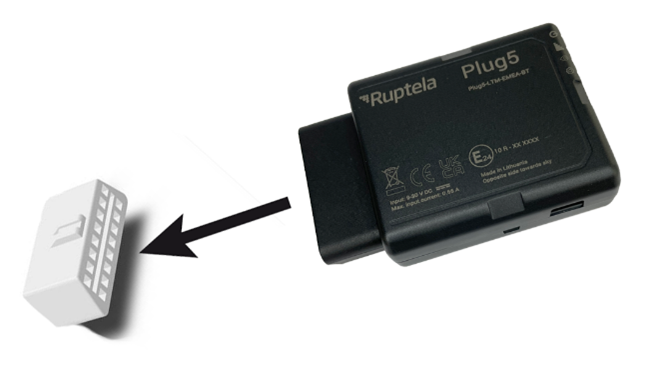

Connect the device to the OBDII port. There is only one way to plug the device in, be careful to not apply too much pressure that could damage the pins.
Make sure the LEDs are turned ON.

How to Rename the FTx Device from IMEI to Vehicle Name

It is very important to rename the device before installation. Rename the device from the IMEI number to the vehicle’s make, model, and other identifiable information (e.g., license plate). This ensures efficient tracking and management of multiple devices, helps avoid confusion, and enhances the accuracy of features such as fuel management and driver behavior monitoring.

Note: After installation of the FTx device, there is an 20% chance that CAN datas may not be available. The customer should check the data in the system and contact the Support Team if data is missing.

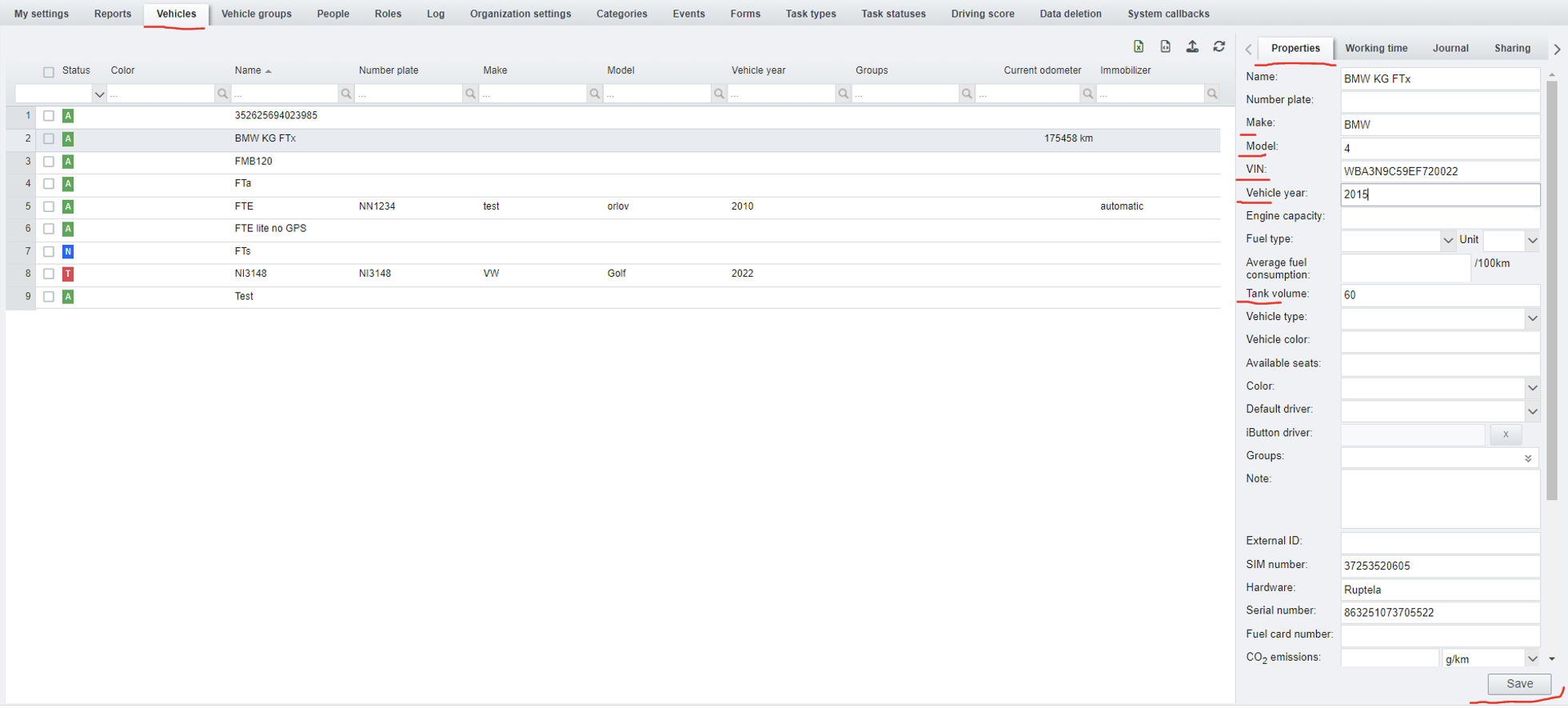

To rename the device from the IMEI number to a more meaningful identifier (such as the vehicle’s license plate), follow these steps:

Go to Settings:

Log in to your Fleet Complete account.
Navigate to the Settings section.

Select Vehicles:

In the Settings menu, click on Vehicles.

Choose the Vehicle Displayed with the IMEI Number:

Locate the vehicle that is currently displayed with its IMEI number.

Click on Properties:

Select the vehicle and click on Properties.

Rename the Device:

In the Properties section, rename the device to something meaningful, like the vehicle’s license plate or another recognizable identifier.

Frequently Asked Questions

Q: Why is it important to enter the fuel tank volume in the system?

A:Entering the fuel tank volume is crucial for accurate fuel data calculations. This information enables the system to monitor fuel consumption, detect discrepancies, and provide precise fuel management insights.

Q: What happens if I don’t rename the device? A: If the device is not renamed, it will continue to display the IMEI number, which can lead to confusion, especially if multiple devices are being managed.

Q: Can I track my vehicle without entering the vehicle details? A: Yes, tracking will still occur, but features such as fuel management and driver behavior monitoring will be less accurate without the proper vehicle data.

Q: What should I do if I need to transfer the device to a different vehicle? A: Follow the procedures outlined in the next section.

Correct Procedure for Transferring FTx Devices Between Vehicles

It is crucial to note that it is not allowed to move devices from one vehicle to another without following the proper procedure.

Steps to Transfer the Device:

Contact Support or Sales Agent:

Before moving the device to a new vehicle, the customer must contact Support Agent. This step is vital to ensure a smooth transition and to prevent potential issues with tracking and data collection.
To initiate this contact: The customer should create a support ticket through the FC+ platform by selecting the Support button.
Support Agent Assistance:The Support Agent will assist in transferring the device correctly. They will Terminate and Reset the device as new.

Renaming the Device:

After the device has been reset, the customer must rename the device following the renaming steps outlined in the renaming section.

Install the Device:

Once the device has been renamed, the customer can proceed with the installation in the new vehicle.

Accessories

If the device obstructs plastic covers to close firmly, mainly because of the OBDII location, you can order an OBD II extension cable.

In case of using the extension cable it is recommended to place the device in a location where there are no any moving parts of the vehicle or any metal above the device. Direction of the LEDs is pointing towards the interior of the vehicle and not to the engine compartment.
