MGS60 User manual
IMPORTANT INFORMATION:
Caution! Devices are delivered with partially charged internal batteries. During initial setup, do not use devices with existing battery levels. Connect the device to the power supply until they are fully charged. After devices are fully charged, they can be used.
Caution! There is a risk of explosion if you replace the internal battery with a non- approved type of battery. Manage disposal of used batteries according to environmental compliance guidelines.
Waste Management: Equipment must not be disposed of with other household waste. The product must be transported to special collection points at the end of its life cycle.
Introduction

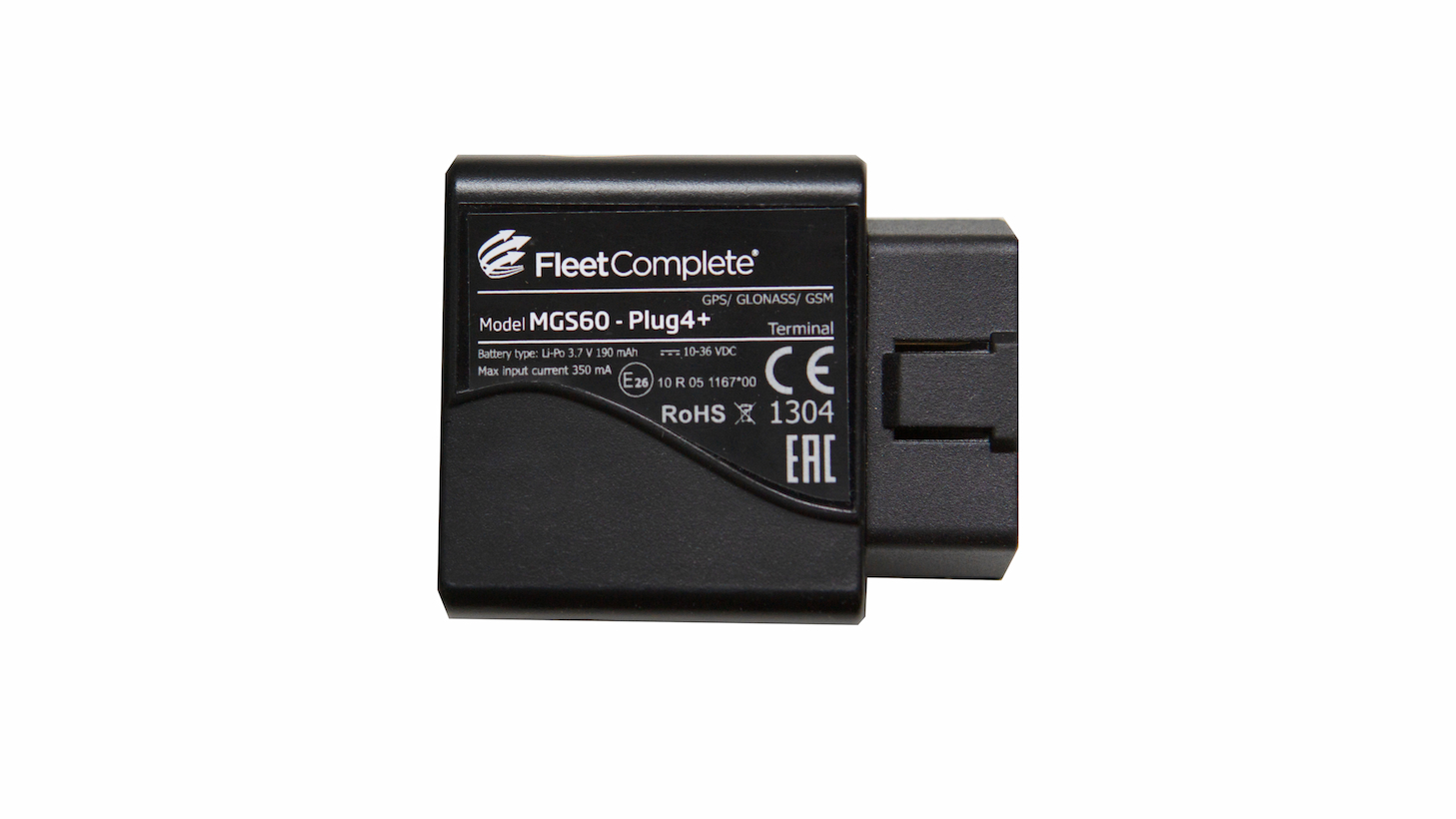

The MGS60 is a Plug & Play type GPS tracking device that connects to the vehicle via the OBD2 socket. Fast and simple installation eliminates installation costs and allows on-the-spot presentation of the device.
Basic Characteristics:
- Fast and Easy installation
- Recording of trips, distance travelled and speed of the vehicle.
Installation
The MGS60 is a Plug & Play device and as such, no special installation knowledge is required, and the installation can be carried out by the user of the system. The device plugs in directly to the existing OBD (On-Board-Diagnostics) port of the vehicle according to the instructions provided below.
Fleet Complete Customer Support can assist you with the process if required.

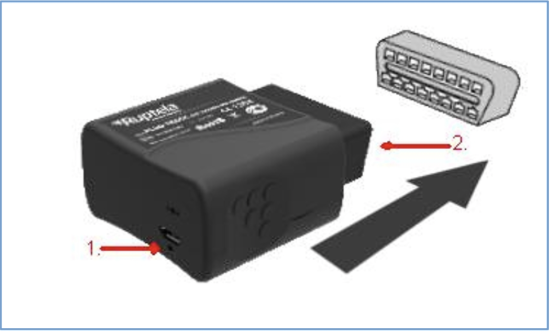

Device Characteristics:
- LED
- OBD Port
To activate the Device:
- Locate the OBD port of your vehicle (Usually located under the dashboard, or at the left-hand side of the steering wheel or at the center console near the gear lever – consult vehicle manufacturer manual to locate it).
- Connect the device to the OBD port. There is only one way to plug the device in, be careful not to apply too much pressure so that you don’t damage the pins.
- Make sure that the LED is blinking.
To deactivate the device:
- Remove the device from the OBD port of your vehicle.
GNSS Fix is acquired
| Pattern | Description |
|---|---|
| Once every second | Accurate GSM, no GPRS |
| Once every 4 seconds | Accurate GSM, GPRS connected |
| Always on, blinks once every 4 seconds | Link with server is open |
| Once every 0.2 seconds | No signal |
GNSS fix is not acquired
| Pattern | Description |
|---|---|
| Twice every second | Accurate GSM, no GPRS |
| Twice every 4 seconds | Accurate GSM, GPRS connected |
| Always on, blinks twice every 4 seconds | Link with the server is open |
| Twice every 0.2 seconds | No signal |
Sleep mode
| Once every 10 seconds | The device is in sleep mode |
Accessories
If the device prevents the vehicle from functioning properly or the OBD2 port location does not allow the device to function properly, you can order one of the two optional cables available.
If you use an OBD2 extension cable, it is recommended to place the device next to the steering wheel or the center console so that the LED is pointing towards the interior of the vehicle and not to the engine compartment.

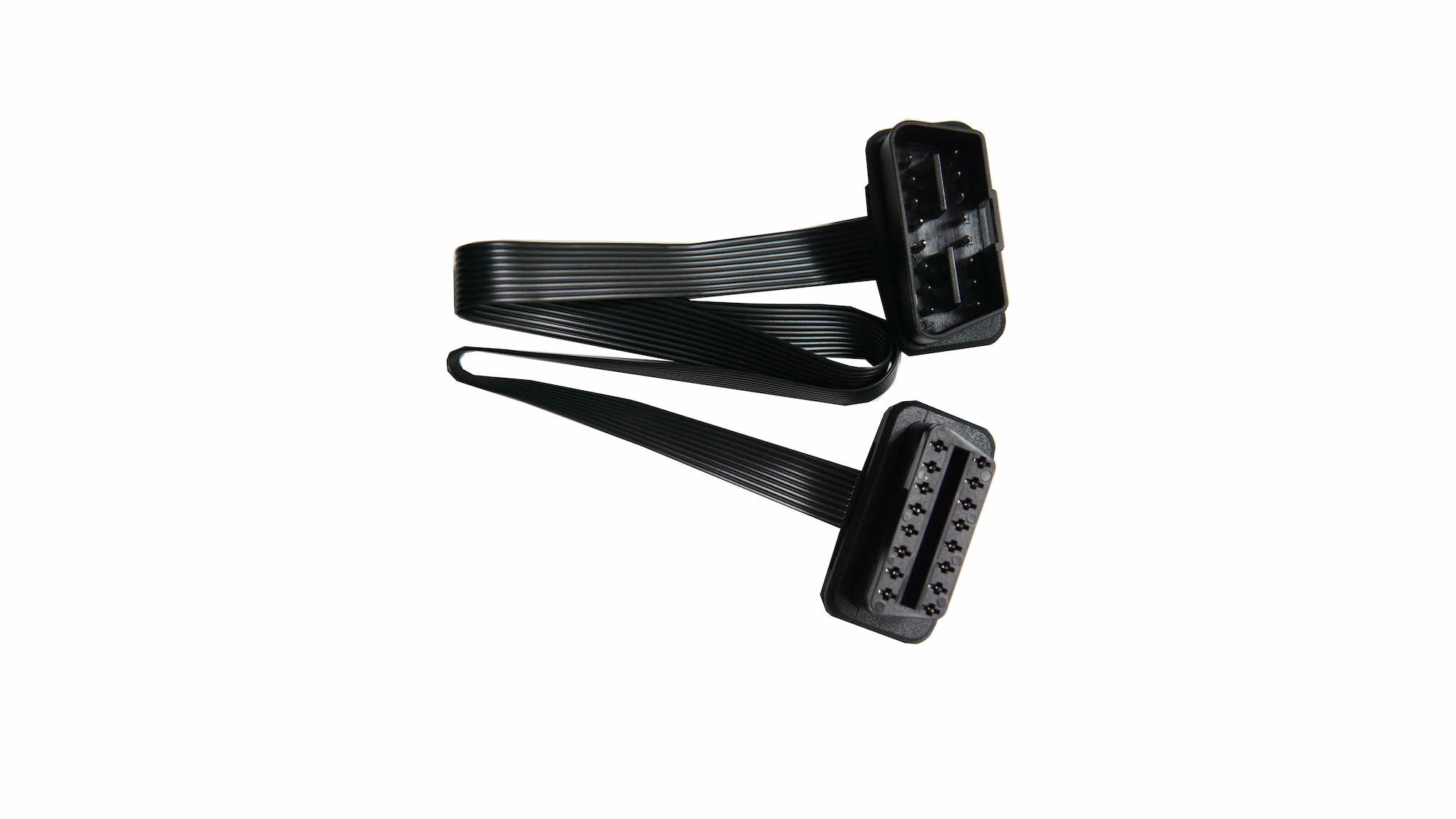

Image 1: OBD2 Extension cable

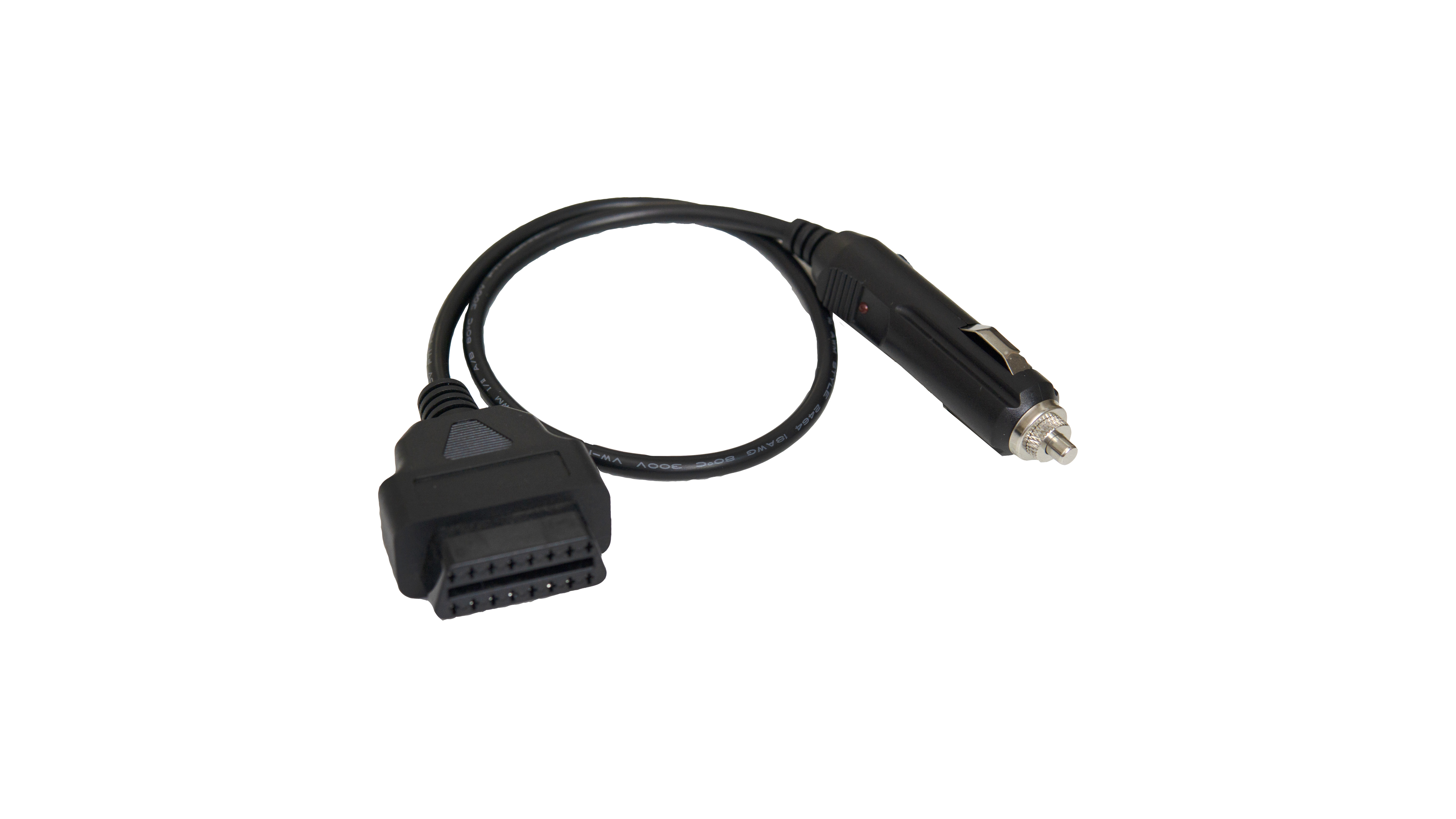

Image 2: 12V vehicle lighter plug to OBD2
FCPlus
Devices arrive at customers preconfigured and ready to be used. End user does not need to setup any of the devices, only settings in regards with assigning names is required.
Fleet Complete Customer Support can help with this process.
FC Plus Settings
After logging in to the FCPlus platform the information provided is as follows:

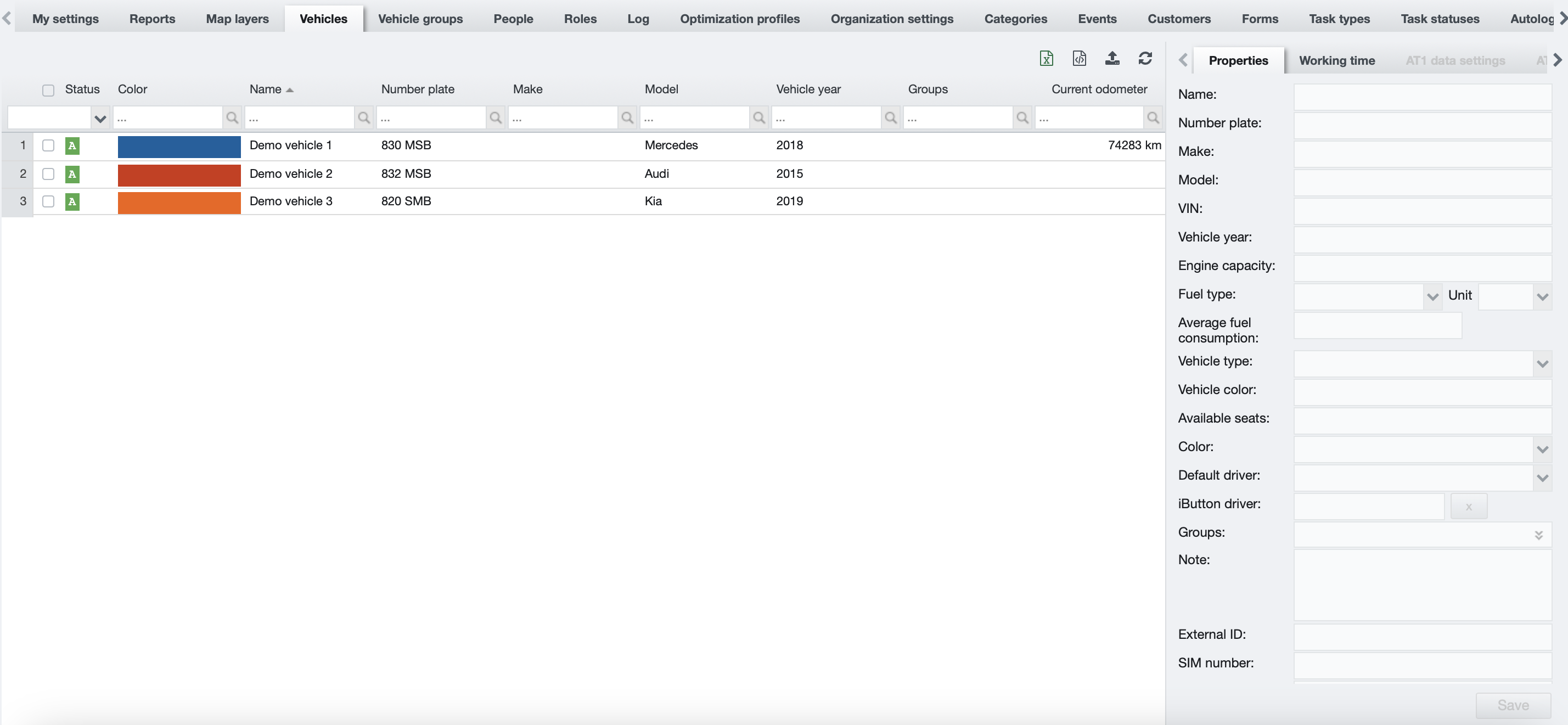

In order for the user to set naming on devices and assign people or objects to them, he can navigate to top right corner and select «Settings». In the Settings screen, as shown below, select the Vehicles Tab and then Properties Tab.
There you can assign names to Vehicles / devices to identify them from other vehicles. Click on the «Save» button for changes to take effect.
FCPlus Tracking Screen

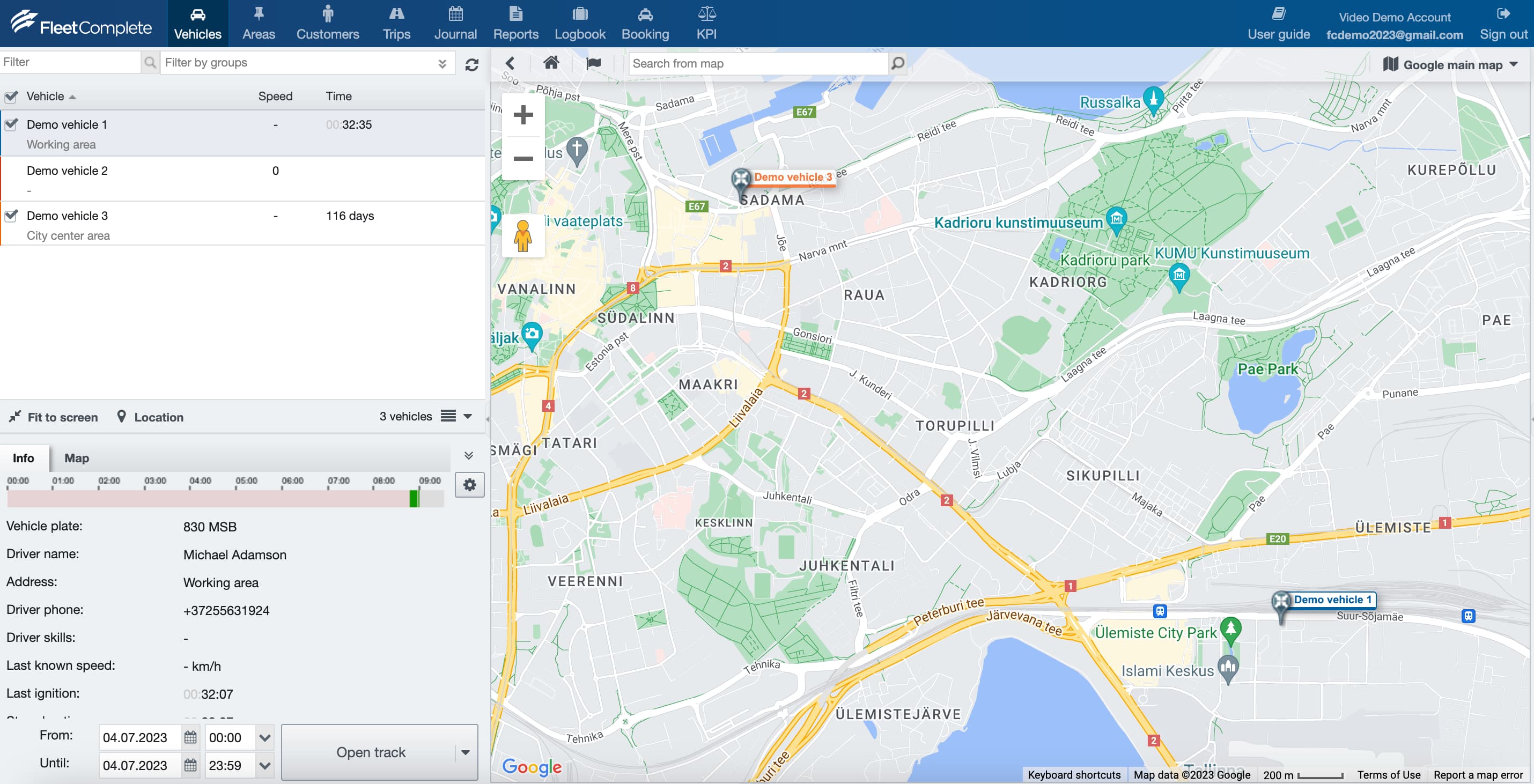

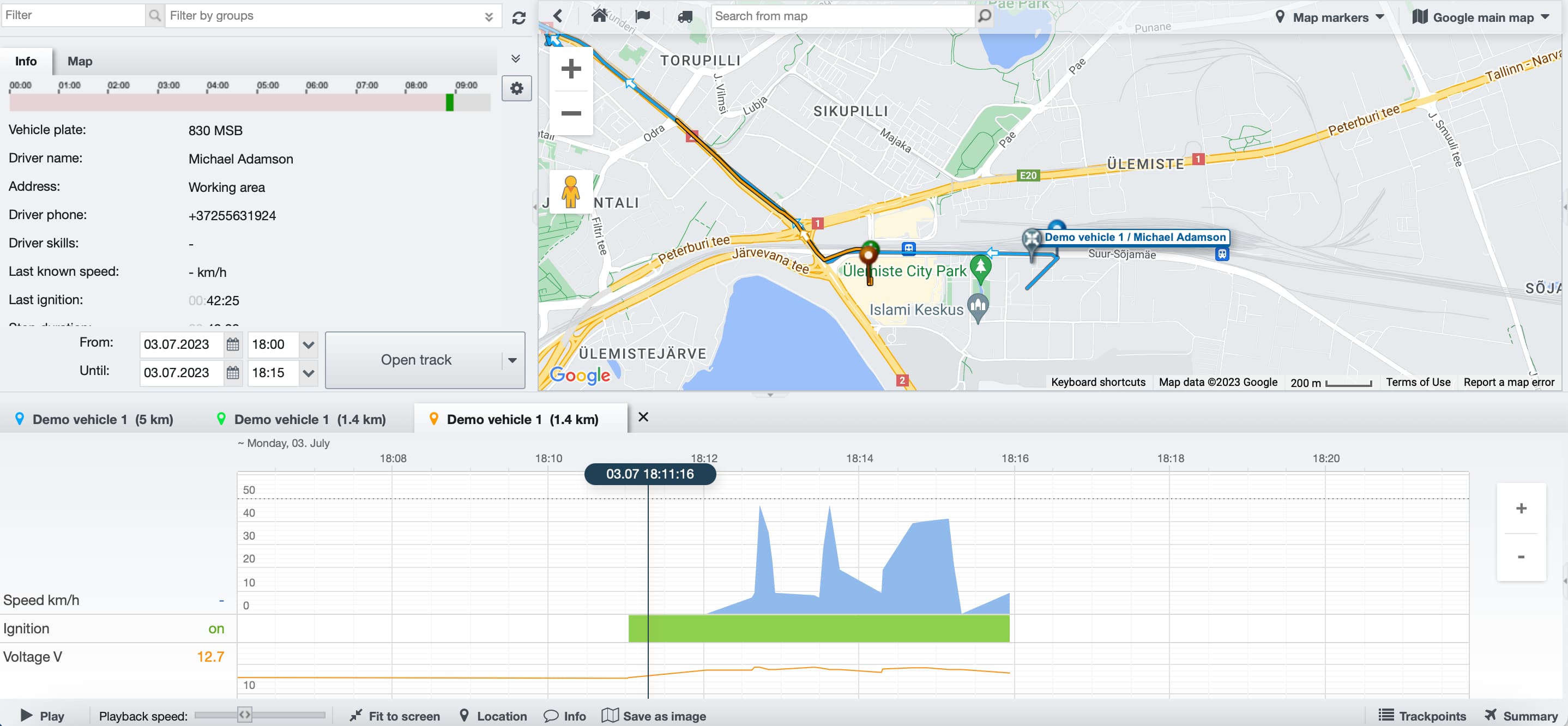

In the FCPlus main screen you can have a total overview of the fleet of assets or vehicles, and by selecting specific asset / vehicle, you can have data is it concenrs its location, speed, voltage as well as having historical data of motion by selecting the «Open Track» option.
The tracking screen will provide location updates according to the default DDS (Device Data Settings) of the device while being in Motion.
If you require any changes to the DDS settings Fleet Complete Customer Support will assist you doing so.
