MGS30 User manual

IMPORTANT INFORMATION

Caution! Devices are delivered with partially charged internal batteries. During initial setup, do not use devices with existing battery levels. Connect the device to the power supply until they are fully charged. After devices are fully charged, they can be used.

Caution! There is a risk of explosion if you replace the internal battery with a non- approved type of battery. Manage disposal of used batteries according to environmental compliance guidelines.

Waste Management: Equipment must not be disposed of with other household waste. The product must be transported to special collection points at the end of its life cycle.

Introduction

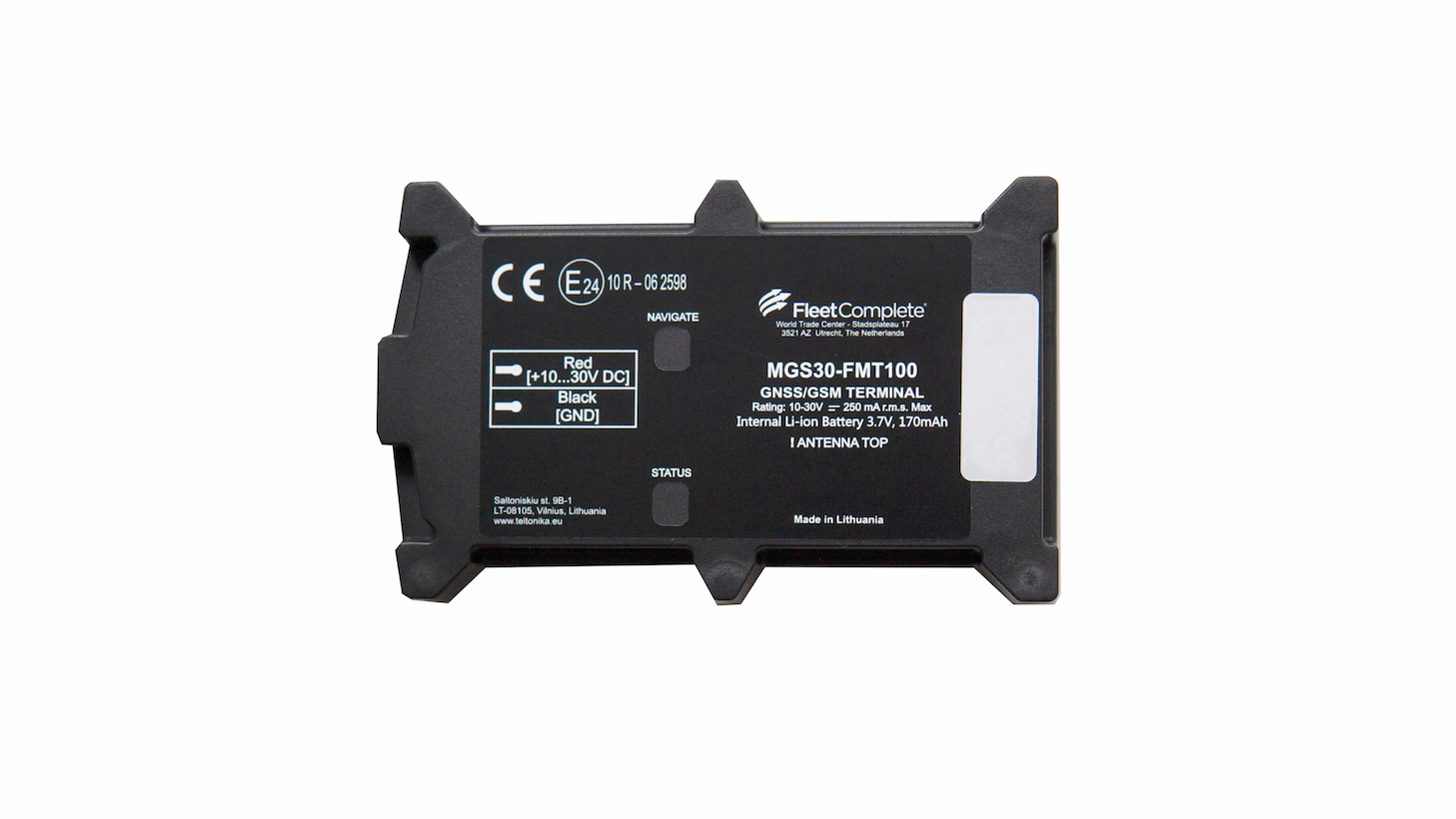

The MGS30 is a small, waterproof GPS tracking device that connects directly to the vehicle's battery.

It uses its internal accelerometer to sense ignition on and has internal battery to keep monitoring available when the battery of the vehicle starts losing power.

Built-in accelerometer and gyroscope sensors are used to provide Driver Behaviour and Crash Detection data.

Basic Characteristics:

• Fast and Easy installation.
• Recording of trips, distance travelled and speed of the vehicle.

Installation - Mounting

The MGS30 is a Plug & Play device and as such, no special installation knowledge is required, and the installation can be carried out by the user of the system. Fleet Complete Customer Support can assist you with the process if required.

• Device Fastening

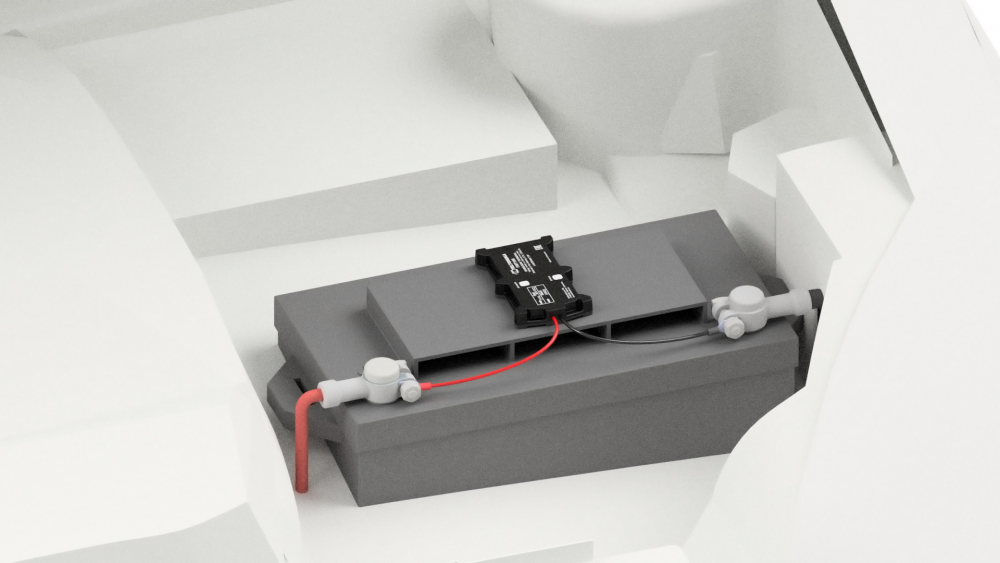

• Locate the Battery in your vehicle. If a cover exists, remove it to access the poles
• of the battery.

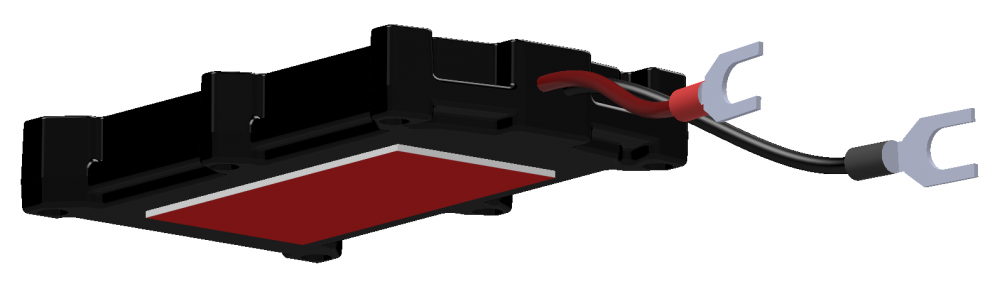

• The device comes with a double-sided tape on its back; use it to attach the device on the battery, so that the logo of the device faces up.

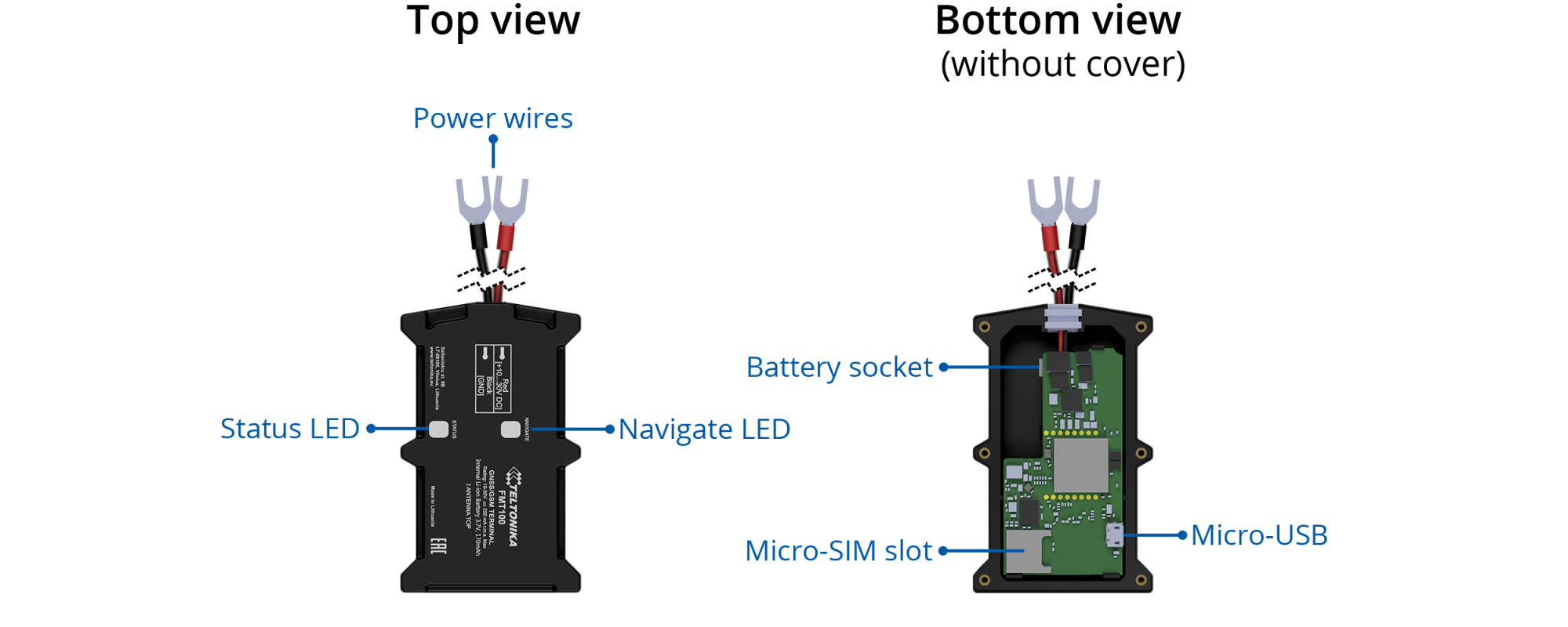

• Connecting power wire

• Device power wire is designed to be directly connected to the positive terminal fastener of the vehicle battery

• Connecting ground wire

• Device ground wire is designed to be directly connected to the negative terminal fastener of the vehicle battery.

Device Operation in Telematics Platforms

FCPlus Devices arrive at customers preconfigured and ready to be used. End user does not need to setup any of the devices, only settings in regards with assigning names is required. Fleet Complete Customer Support can help with this process.

FC Plus Settings After logging in to the FCPlus platform the information provided is as follows:

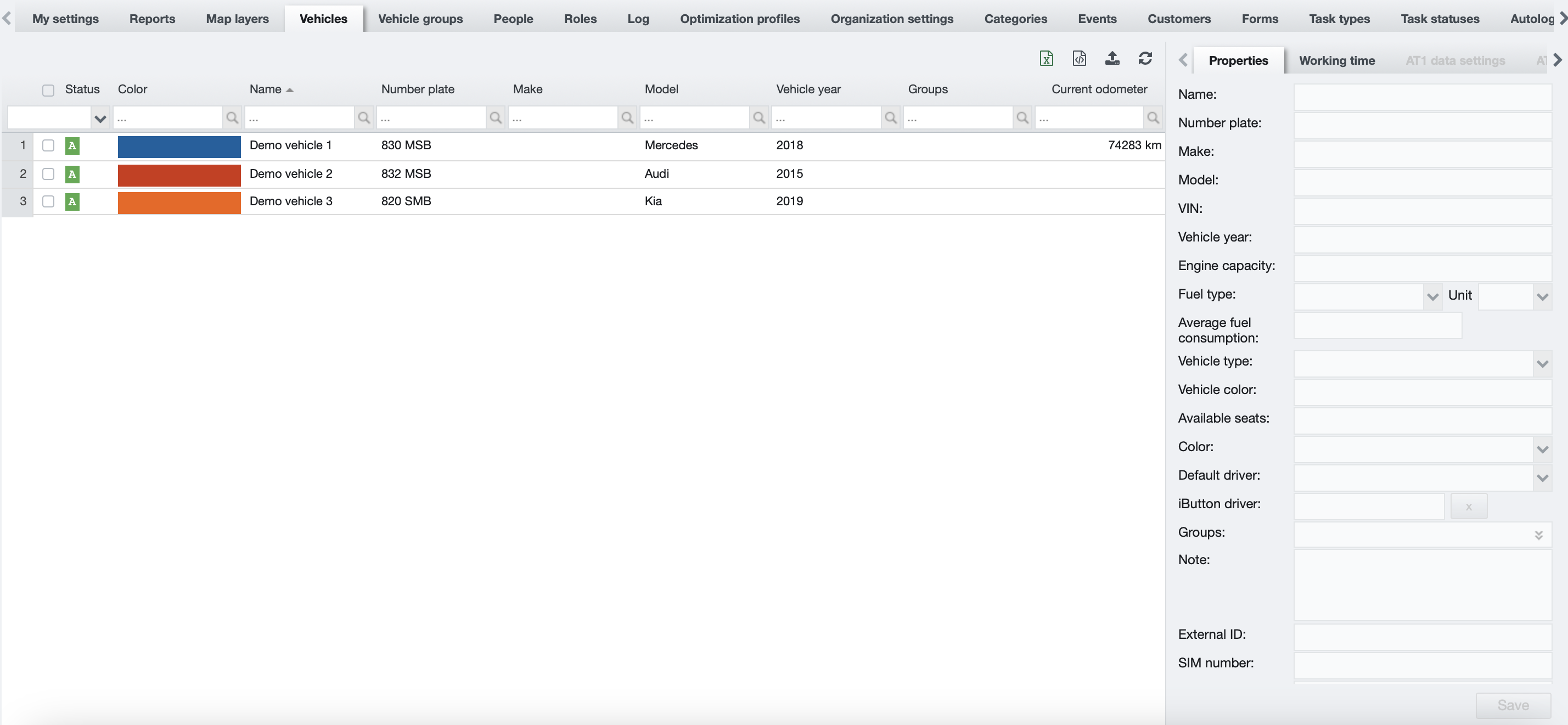

In order for the user to set naming on devices and assign people or objects to them, he can navigate to top right corner and select «Settings». In the Settings screen, as shown below, select the Vehicles Tab and then Properties Tab.

There you can assign names to Vehicles / devices to identify them from other vehicles. Click on the «Save» button for changes to take effect.

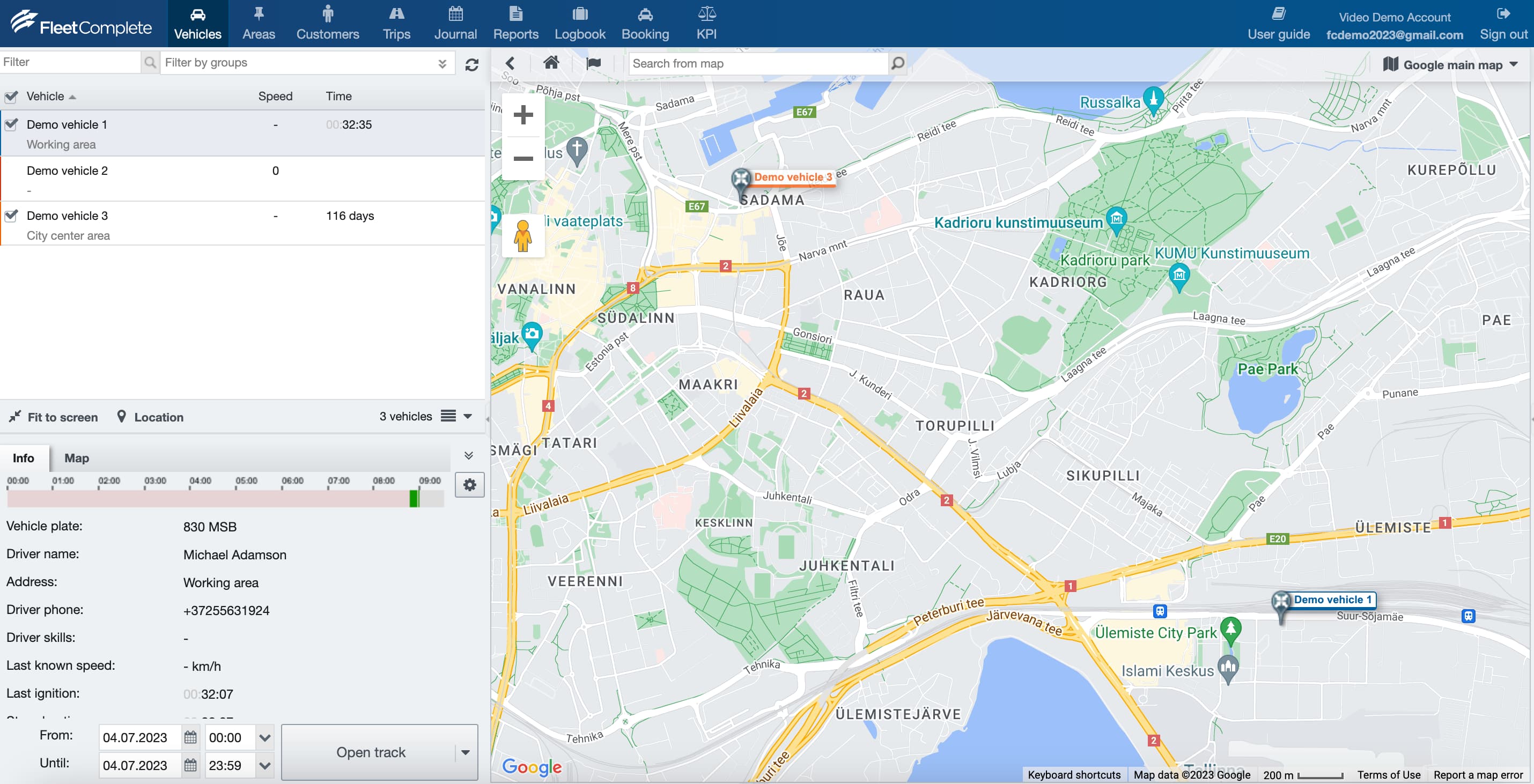

FCPlus Tracking Screen

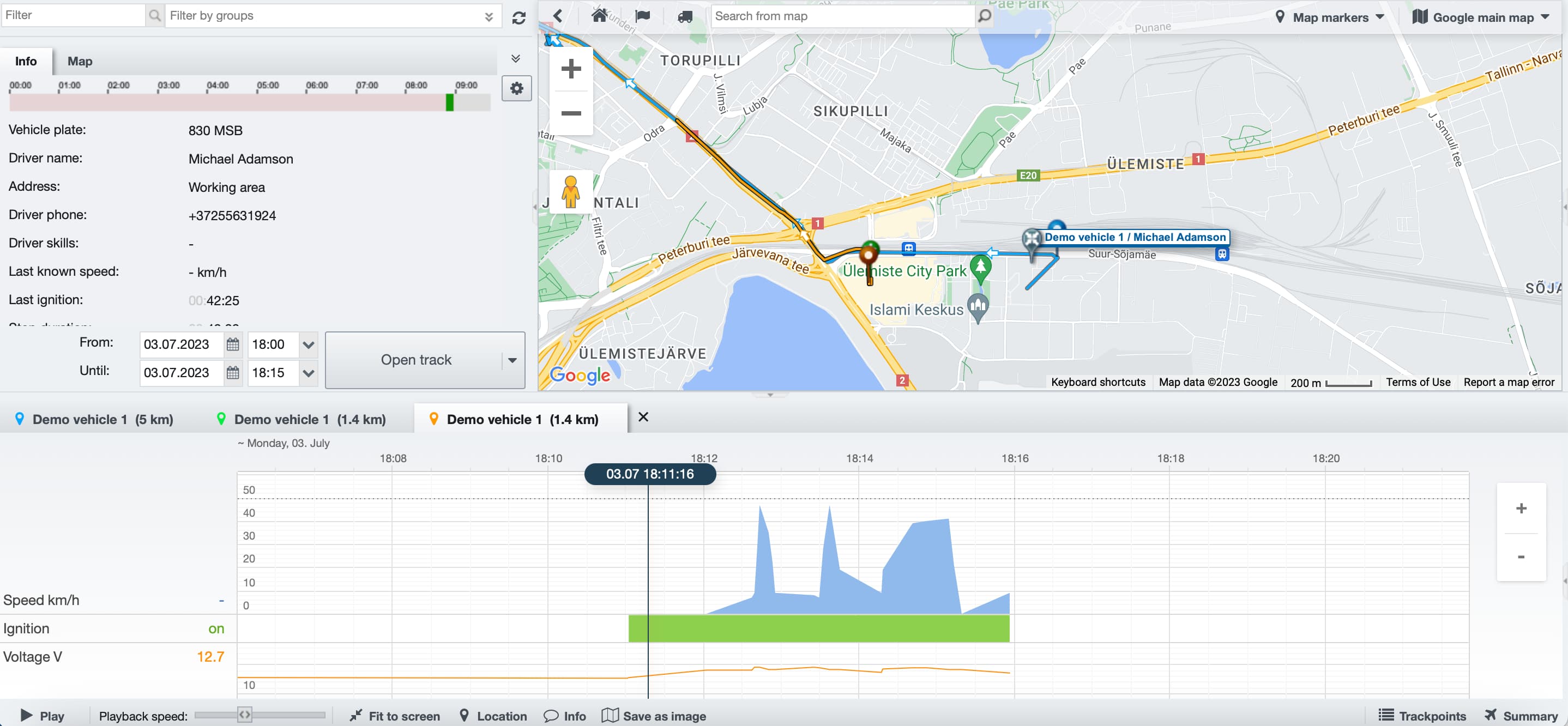

In the FCPlus main screen you can have a total overview of the fleet of assets or vehicles, and by selecting specific asset / vehicle, you can have data is it concenrs its location, speed, voltage as well as having historical data of motion by selecting the «Open Track» option.

The tracking screen will provide location updates according to the default DDS (Device Data Settings) of the device while being in Motion. If you require any changes to the DDS settings Fleet Complete Customer Support will assist you doing so.
