PT250 Personal tracker User manual
Scope & Description
The scope of this document is to provide information for the appropriate use of PT250.

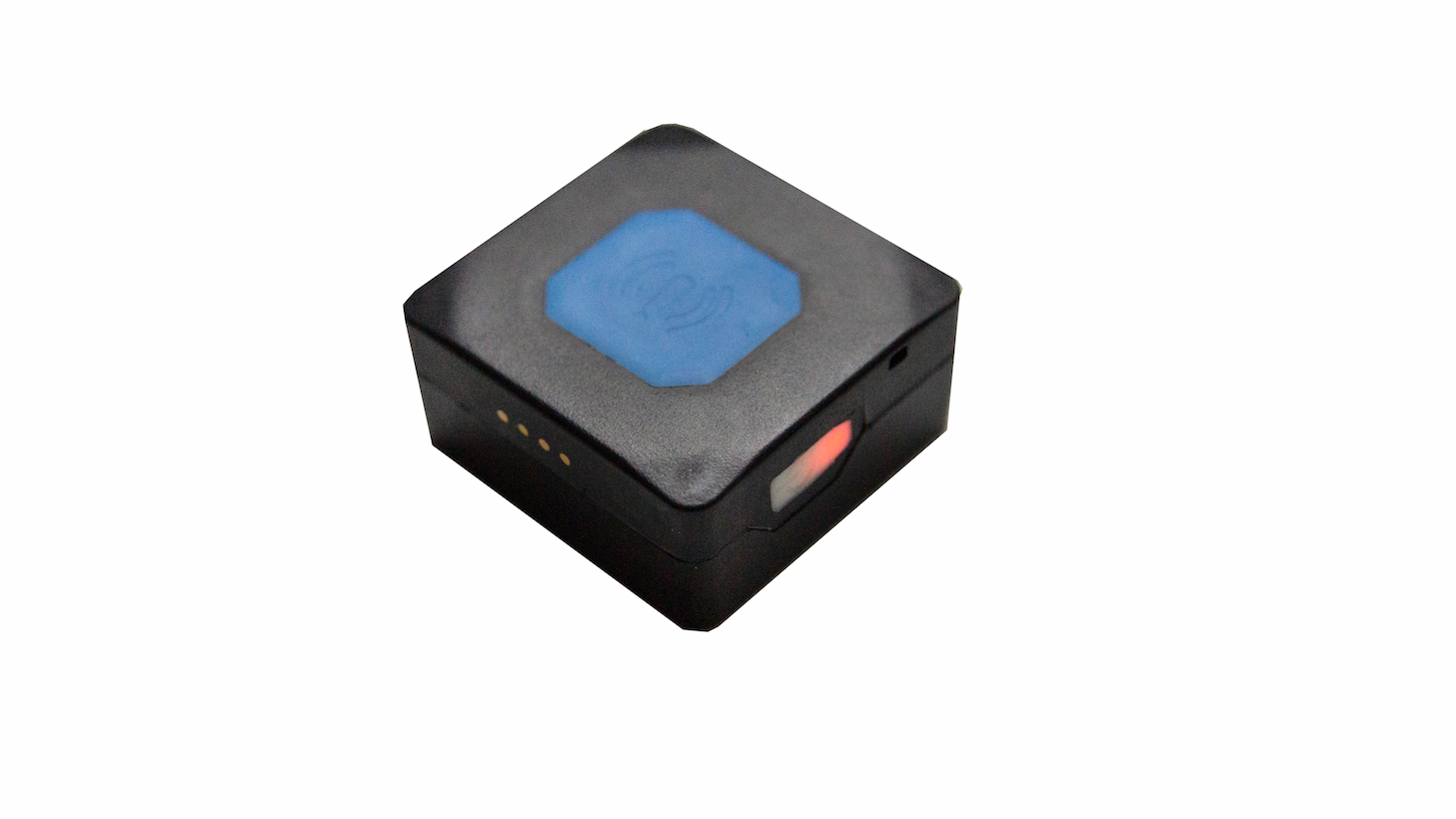

The PT250 is an autonomous and very small GPS tracker that offers high accuracy of tracking and monitoring of people, pets, cars and assets on the move. Also, IP67 waterproof case provides convenient usage, even in harsh conditions.
Package contains
- PT250 device
- USB magnetic cable
- 3.8 V 800 mAh rechargeable Li-ion battery
Before you start
- When you receive PT250 device connect it to any USB port for charging.
- While is connected to a USB, the Alarm button is not functional.
- Make sure that the device is powered ON.
When the Green LED is ON permanently you can unplug the USB cable and it is ready for use. We recommend using the device in such a way that device buttons and LEDs are easily and quickly accessible.

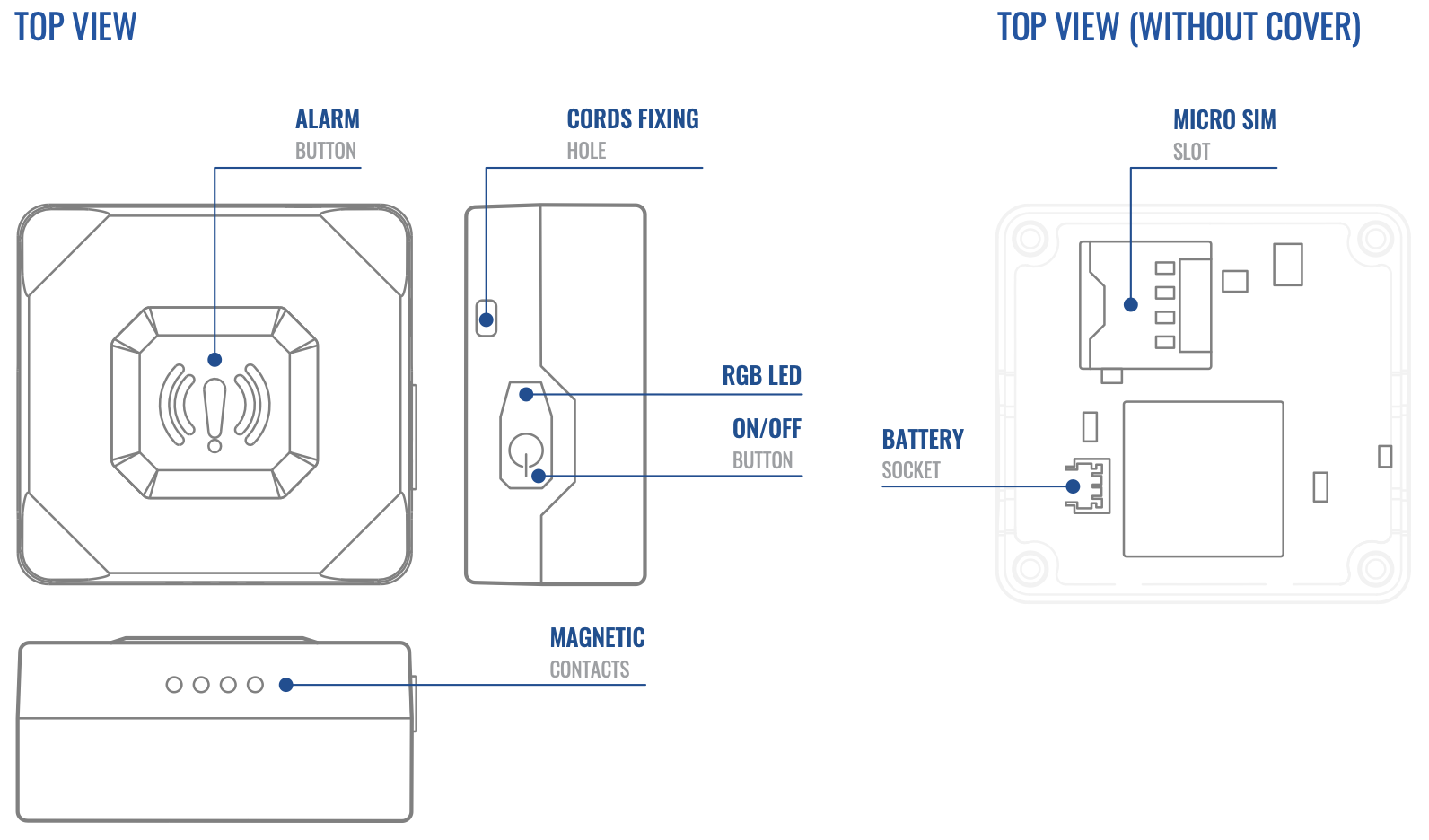

PT250 Interface & Technical features
| Features | Physical specification | Pattern | Description |
|---|---|---|---|
| Status indication | RGB LED | Green LED flashes twice | USB connected and battery is charging |
| Green LED permanently ON | Battery fully charged | ||
| Blue LED flashes once | No GPS fix | ||
| Red LED Flashes frequently | GSM error | ||
| Red LED flashes four times every 2 seconds | Battery remaining level is 30% | ||
| USB | 4 pin Magnetic USB socket for charging | ||
| Alarm button | Blue button on the top | Long-press Alarm button till vibration and Green LED turns ON. | Device sends an instant notification in case of emergency |
| Power ON/OFF button | White button on the side | POWER OFF Long-press Power button till Red LED turns ON | Device is powered OFF |
| POWER ON Long-press Power button till Green LED turns ON | Device is powered ON |
