Self install device ftd
Related Manuals
- FTe installation guide for heavy duties
- FCPlus Getting started
- FCPlus FAQ
- Reports management
- Autolog settings
FTd User manual
Important information
Caution! There is a risk of explosion if you replace the internal battery with a non- approved type of battery. Manage disposal of used batteries according to environmental compliance guidelines.
Waste Management: Equipment must not be disposed of with other household waste. The product must be transported to special collection points at the end of its life cycle.
Introduction

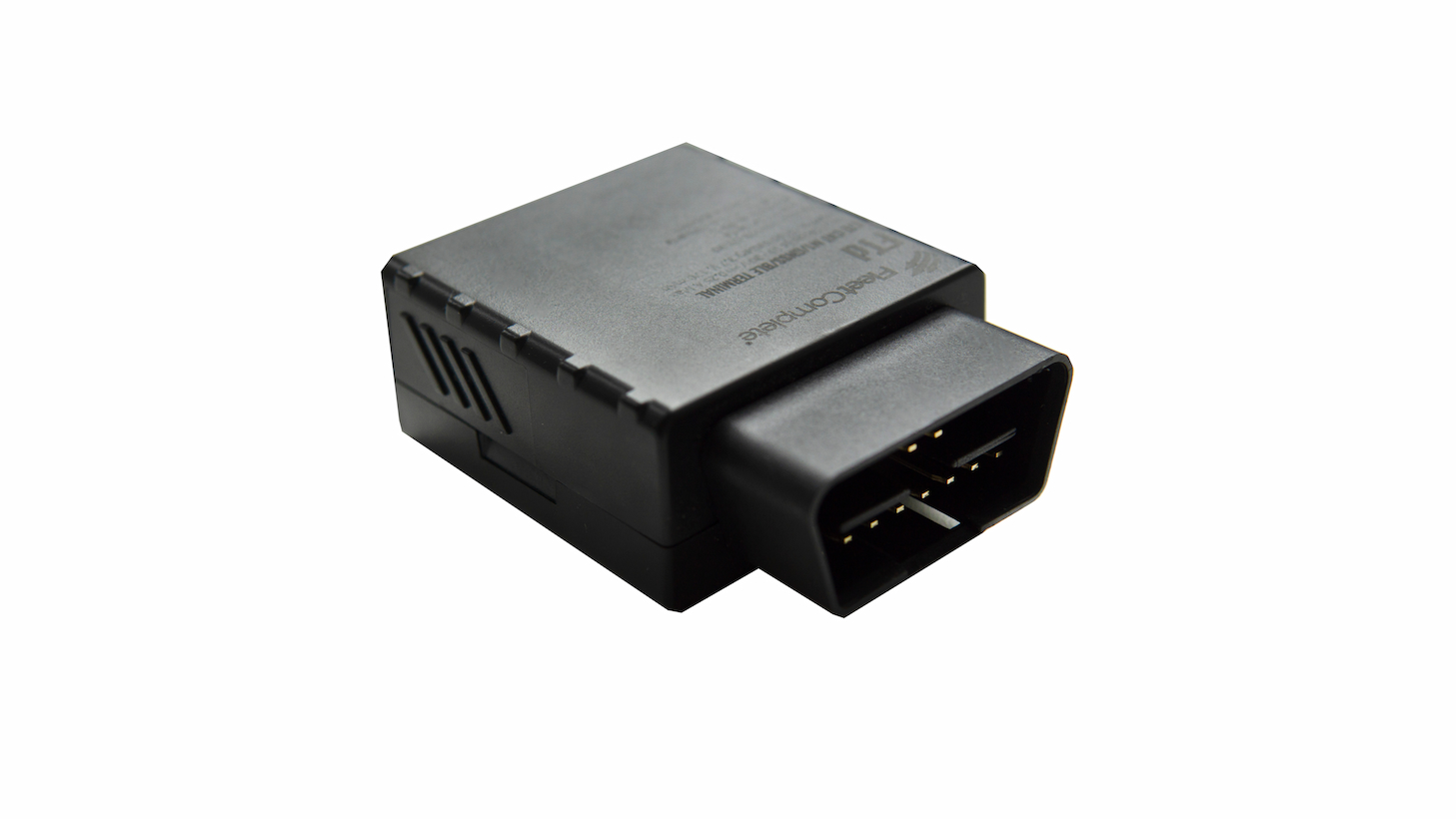

The FTd is a Plug&Play self-install advanced GPS tracking device which is used for Fleet monitoring and has the possibility to read OBDII parameters. More technical data you will find in datasheet brochure.
Check FTd supported vehicle list:
Supported vehicles part 1 Supported vehicles part 2
Technical features
| User Interface | Physical Specification | Pattern | Description |
|---|---|---|---|
| Navigation indication | LED | Permanently Switched ON | GNSS signal is not received |
| Blinking every second | Normal mode, GNSS is working | ||
| OFF | GNSS is turned OFF because: Device is not working OR Device is in Sleep mode | ||
| Blinking Fast Constantly | Device Firmware is being flashed | ||
| Modem indication | LED | Blinking every second | Normal mode |
| Blinking every two seconds | Sleep mode | ||
| Blinking fast for a short time | Modem activity | ||
| OFF | Device is not working OR Device is in boot mode | ||
| OBD-II | Standard OBD-Il connector | ||
| USB | Mini USB socket |
Installation
- The FTd device is connected to vehicle's OBDIl port.

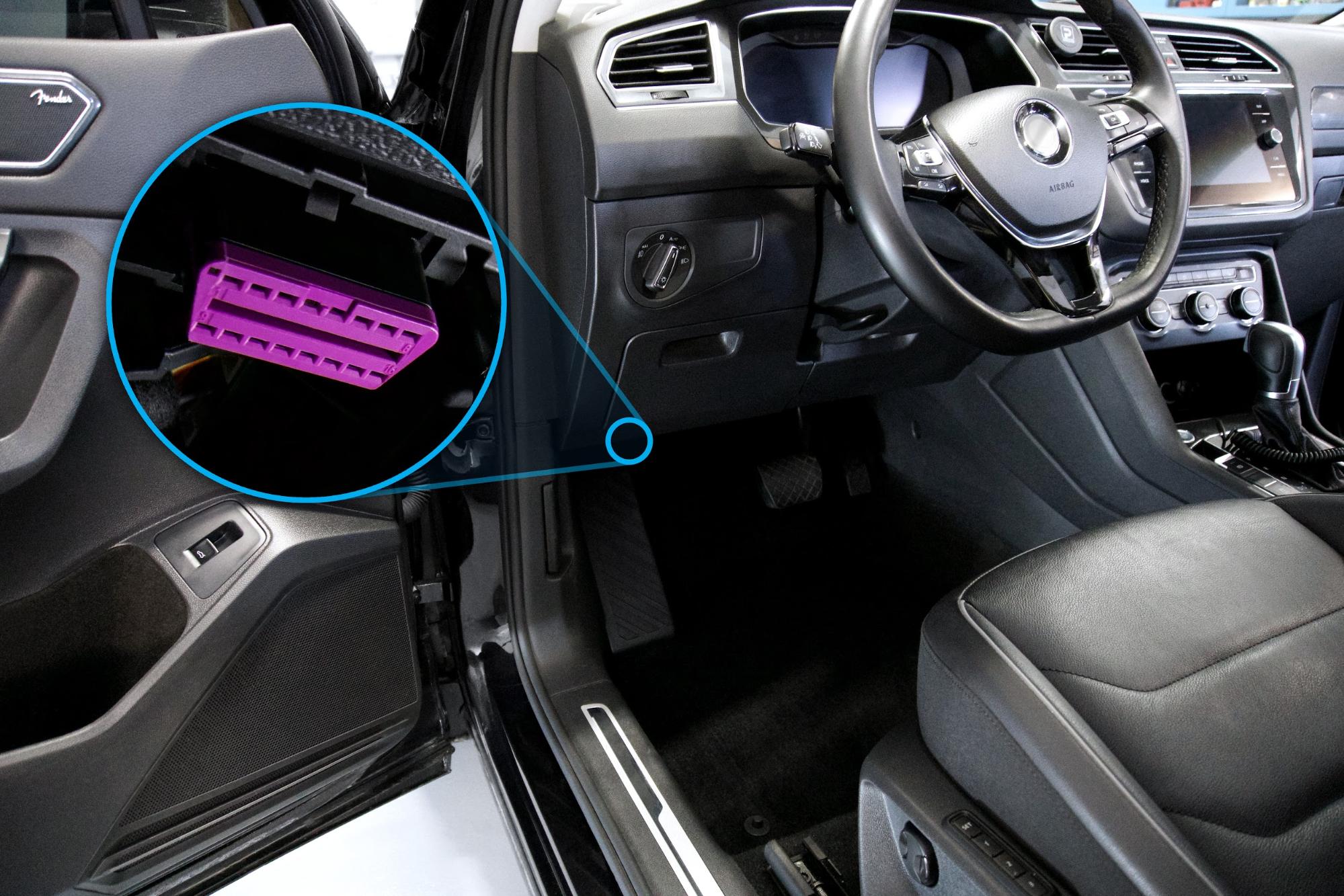

- Locate the OBDIl port of your vehicle
- Connect the device to the OBDII port. There is only one way to plug the device in, be careful to not apply too much pressure that could damage the pins.
- Make sure the LEDs are turned ON.
- To deactivate the device just remove it from the OBDII port of your vehicle.
Accessories

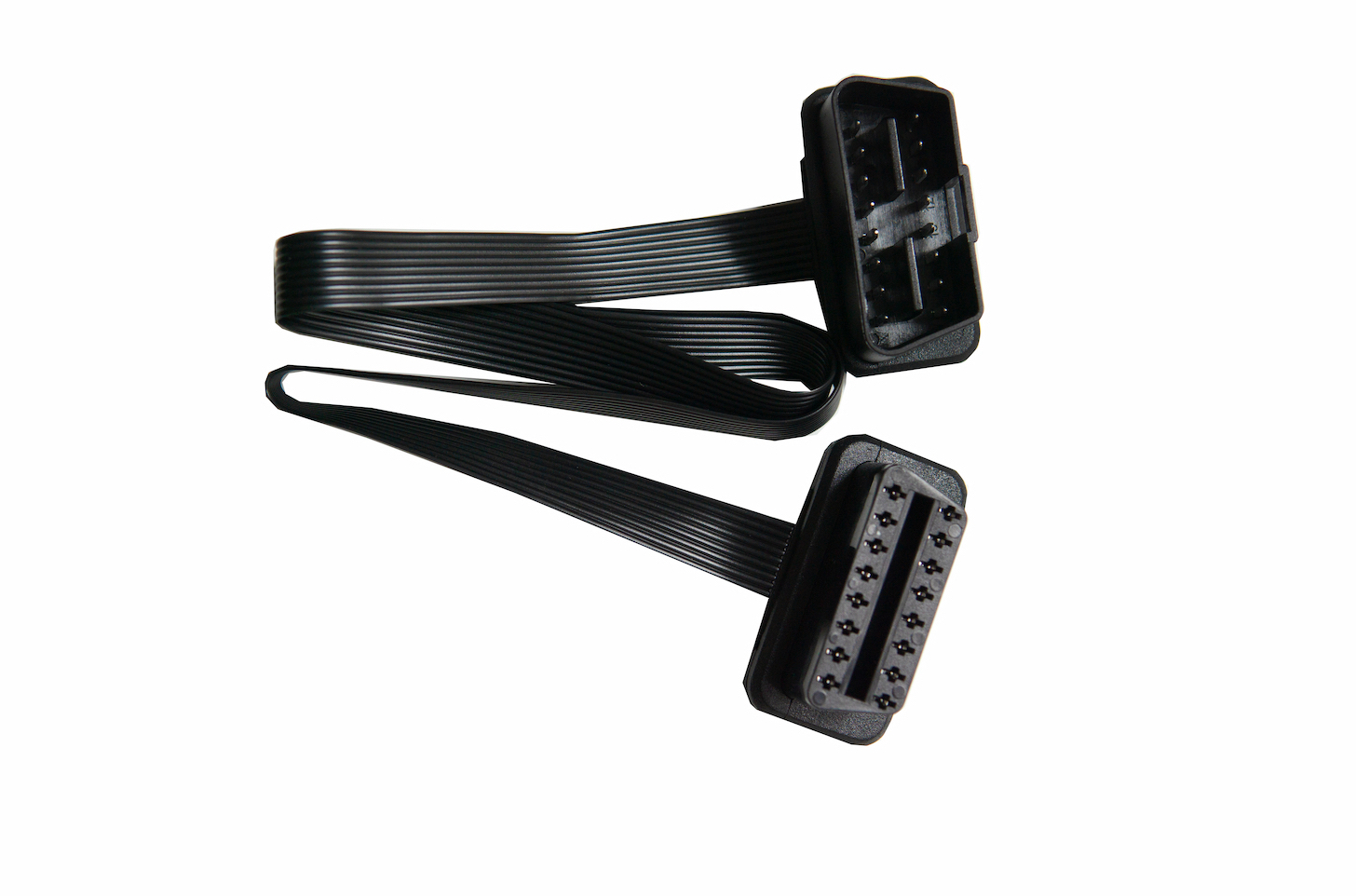

If the device obstructs plastic covers to close firmly, mainly because of the OBDII location, you can order an OBD II extension cable. In case of using the extension cable it is recommended to place the device in a location where there are no any moving parts of the vehicle or any metal above the device. Direction of the LEDs is pointing towards the interior of the vehicle and not to the engine compartment.
