FTs V2 FC datasheet

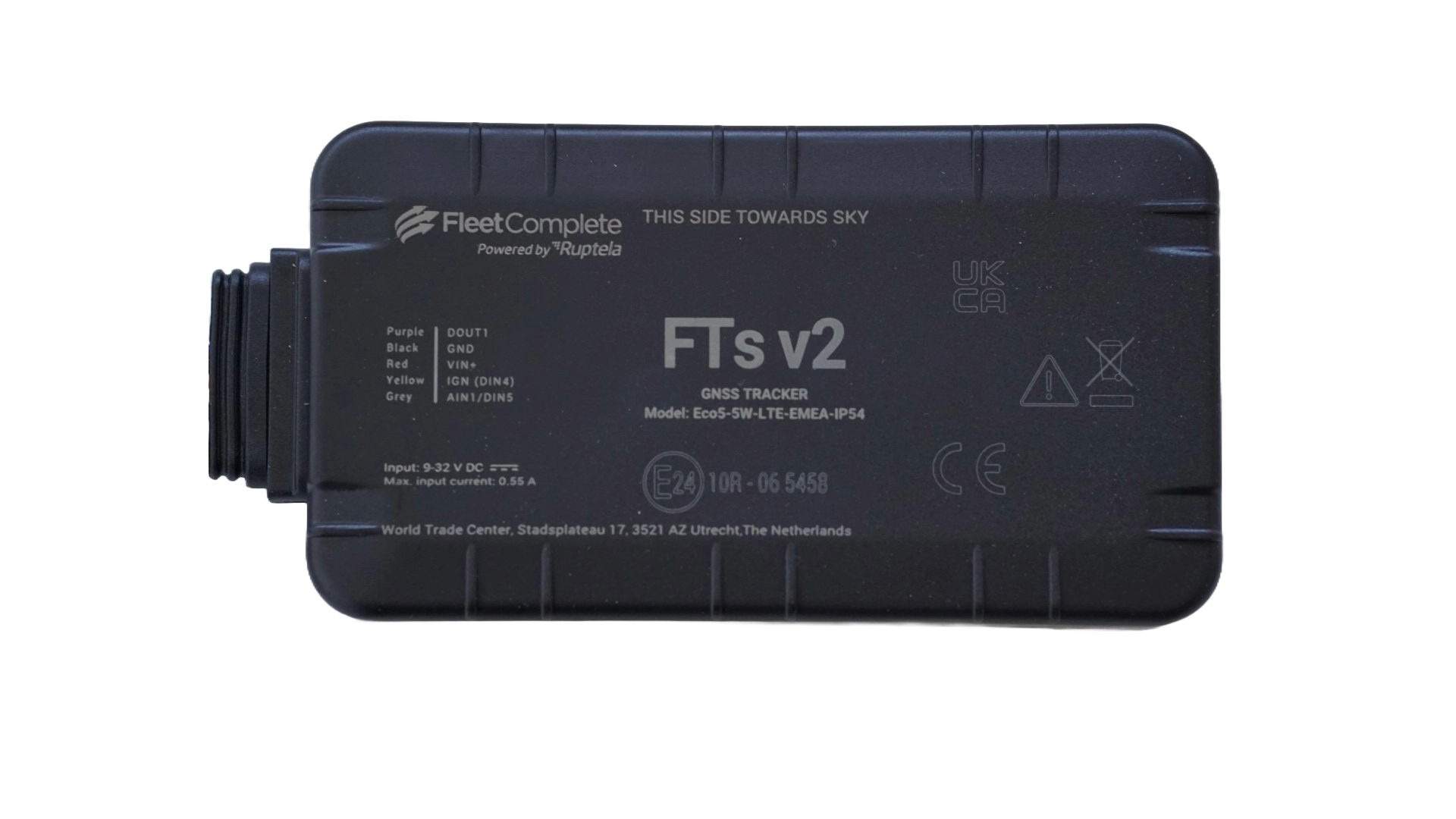

FTs V2 (Eco5 Lite) Provider: Ruptela
Benefits: Real-time fleet monitoring, Driver behavior monitoring, Very Low energy consumption
Detailed specifications
| Environmental specifications | TemperatureOperating: -20 to +40 °C Storage: -20 to +45 °C Battery charging: 0 to +45 °C Battery discharging: -20 to +60 °C Relative humidity:5% to 95% Non-con |
| Electrical Specifications | Power supply range: 9-32 V DC Internal battery: LiPo 3.7 V 180 mAh Protections: Battery short circuit protection, Reverse polarity protection, Electrostatic discharge protection on USB, Charging protection |
| Connectivity | Modem: LTE-EMEA version uses Quectel EG915U-EU Cat 1: B2/B3/B4/B5/B7/B8/B28/B66 аGSM: 850/900/1800/ 1900 MHz (GPRS multi-slot class 12) U-blox M10- GNSS module Antenna: Internal Positioning systems: GPS, GLONASS, Galileo Bluetooth module:BLE version: 5.0 Low energy |
| Interfaces | Power Supply 1 Power supply 1 Signal Ground 1 DIN (ignition detection) 1 DOUT 1 AIN/DIN(positive/ground mode) User interfaces Nano USB Indication LED |
| Features | Internal storage: 16MB Accelerometer: 3 axis (auto-calibrating, impact detection, motion sensing, tilt detection, power up to 16 g) |
| Certifications | E-mark, CE, FCC |
| Physical Properties | Dimensions: 95 x 51 x 14 mm Weight: 57 ± 2 g Housing: Black Plastic |
Standard Configuration
| Min.Period | 60 seconds |
| Min.Distance | 1000 meters |
| Min.Angle | 15 degrees of direction change |
| HeartBeat | 1 hour |
| Sleep mode | After 5 minutes since ignition OFF |
| Ignition sensing | 1 DIN (ignition detection) |
Verticals
FTs V2 device can be used in the following verticals:
- Transportation
- Business
Use Cases
The device offers real-time fleet monitoring and driver behavior monitoring while maintaining very low energy consumption.
