FTi datasheet

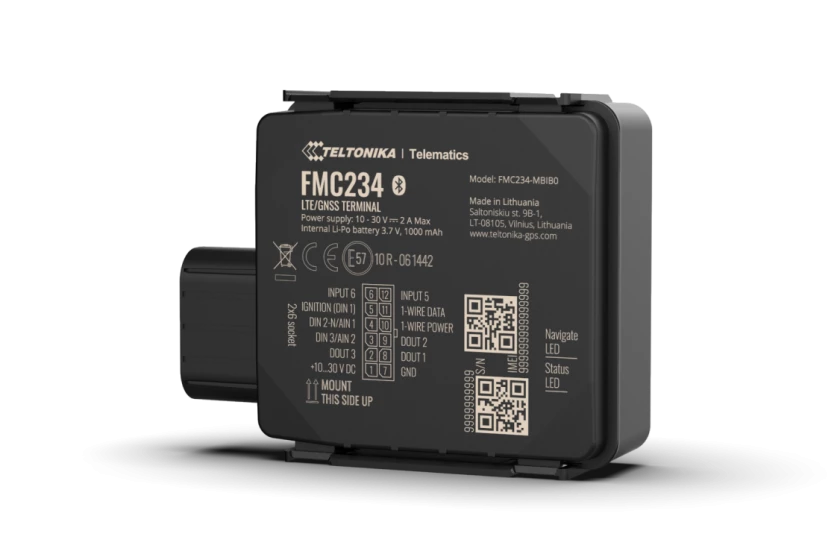

Provider: Teltonika Benefits: FTi (Teltonika FMC234) is a SPECIAL waterproof (IP67) tracker with Bluetooth connectivity, internal high gain GNSS and GSM antennas and integrated high capacity backup battery. Device is designed to work longer without power supply. FTi is suitable for insurance vehicles, agriculture, delivery, refrigerated transport, trailers tracking, security & emergency services. 6-30V power supply makes FTi suitable for motorbikes and water transport.
Detailed specifications
| Detailed specifications | FTi |
|---|---|
| Module. | FMC234- MBIB0: MeiG SLM320-E with Teltonika TM2500 FMC234- MCIB0: MeiG SLM320-LA with Teltonika TM2500 Technology: LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS Tracking sensitivity -165 dBM Position accuracy < 2.5 CEP Velocity accuracy <0.1m/s (within +/- 15% error) Hot start < 1 s Warm start < 25 s Cold start < 35 s |
| Cellular | Technology LTE CAT 1, GSM |
| Power | Input voltage range 10 - 30 V DC with overvoltage protection Internal Back-up battery 1000 mAh Li-Po rechargeable 3.7 V battery (3.7 Wh) Internal fuse 3 A, 125 V Power consumption: At 12V < 3 mA (Ultra Deep Sleep) At 12V < 5 mA (Deep Sleep) At 12V < 16 mA (Online Deep Sleep) At 12V < 18 mA (GPS Sleep) At 12V < 33 mA (nominal with no load) At 12V < 2A Max. (with full Load / Peak) |
| Bluetooth | 4.0 + LE Supported peripherals: Temperature and Humidity sensor, OBDII dongle, Inateck BarcodeScanner, Universal BLE sensors support |
| Physical specification | 70,5 x 67,0 x 25,6 mm (L x W x H) 85,0 x 67,0 x 25,6 mm (L x W x H) (length with connector socket) |
| Operating environment | Operating temperature (without battery) -20 °C to +85 °C Storage temperature (without battery) -20 °C to +85 °C Operating temperature (with battery) -20 °C to +60 °C Storage temperature (with battery) -20 °C to +60 °C Operating humidity 5% to 95% non- condensing Ingress Protection Rating IP67 Battery charge temperature 0 °C to +45 °C Battery discharge temperature -20 °C to +60 °C |
| Interface | 3 Digital Inputs (Ignition is Digital input 1) 1 Negative Inputs (Digital Input 2) 2 Impulse Inputs (Digital Input 1, Digital Input 2) 3 Digital Outputs 2 Analog Inputs 1 CAN Adapter Inputs 1 1-Wire GNSS antenna Internal High Gain Cellular antenna Internal High Gain USB 2.0 Micro-USB LED indication 2 status LED lights SIM Micro-SIM or eSIM Memory 128MB internal flash memory |
| Features | Accelerometer sensor Green Driving, Immobilizer, iButton Read Notification Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, UltraDeep Sleep Time Synchronization GNSS, NITZ, NTP Fuel monitoring LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle Ignition detection Digital Input 1 |
| Certifications | CE/RED, E-mark |
Standard configuration
| Transmission reason | FTi |
|---|---|
| Min.Period: | 60 seconds |
| Min.Distance: | 1000 meters |
| Min.Angle: | 10 degrees of direction change |
| Min.Speed Delta: | 20 km/h of speed change |
| HeartBeat: | 1 hour |
| Sleep mode: | after 2 minutes since ignition OFF |
| Ignition sensing: | DIN1 - Physical ignition signal |
Verticals
FTi device can be used in the following verticals:
Security Transportation Insurance Business
Use cases
Advanced tracking for insurance telematics in Denmark, waterproof device requirements
