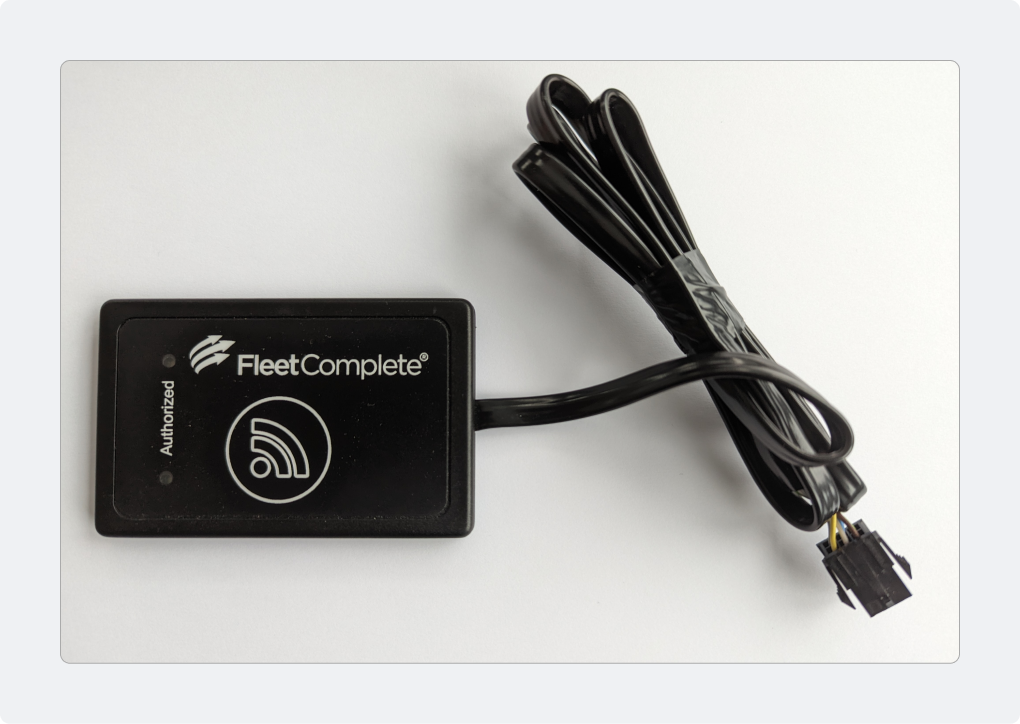

RFID reader Netronix low frequency
Features
- 125kHz transpoders support (EM4102, HITAG1/S,HITAG2, HID ISO PROX II)
- 1WIRE interface (DS1990 emulation)
- Serial interfaces (UART-TTL, RS232-5V)
- Wiegand interface (configurable)
- Wide supply range\
- Over/reverse voltage protection
- Built-in antenna
- Built-in buzzer
- Low Power consumption
- Built-in two LEDs indicator ( green + red )
- Thin, compact enclosure
- Settings by button or serial interface
- Built-in bootloader
- E-mark certification ready
Technical parameters
| Power Supply | 7-32V |
| Operating frequency | 110KHz-125kHz |
| Average power consumption | 5mA (for 1-WIRE, Wiegand) 12mA (for serial interfaces) |
| Interface | 1WIRE: 3,3V – 5V UART 0-5V 9600,8,n,1 RS232, 9600,8,n,1 Wiegand – 37bits |
| Sink current for LED and buzzer controll | Max 150uA |
| Read range | Up to 8cm (depends on transponder) |
| Working temperature | -20°C ÷ +65°C |
| Dimension | 54mm x 85mm x 7mm |
| Cord length | 1m |
| Connector | 2x3 pin male Molex MicroFit3.0 |
Connector pinouts
| PIN | Wire color | Function | Screenshot 2024-07-01 at 08.43.45.png |
|---|---|---|---|
| 1 | Green | 7 - 32 volt supply | |
| 2 | Blue | Green LED, RX for UART | |
| 3 | Grey | Ground signal controlling buzzer | |
| 4 | Brown | 1-Wire data, Wiegand ‘0’ | |
| 5 | White | Red LED, TX for UART, Wiegand ‘1’ | |
| 6 | Yellow | Ground |
- Factory and default configuration
To set default configuration, press button via small hole on reader back side for 5 seconds. Procedure is confirmed by buzzer. This sets parameters as below:
- Interface: 1WIRE, DS1990 emulation, Family code 1, id is sending as long as card is in field,
- Card type: Unique (EM4102)
LED and buzzer control: by pull control wires to ground.

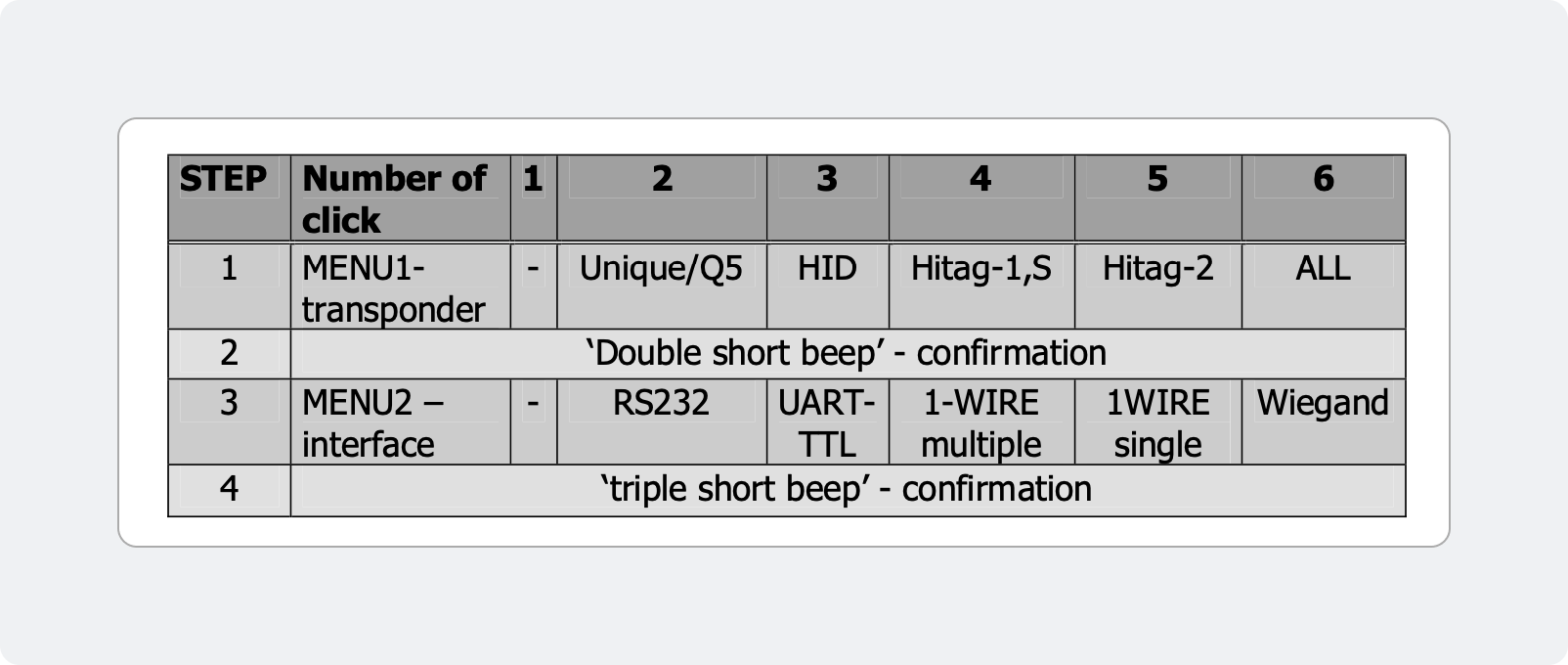

- Change settings using button
Transponder type and interface can be changed using back button.
In case ‘ALL’ transponder mode, reaction for transponder detect is elongated.
Remark! Changing setting by button cause change to default interface settings. That is important, if interface was change using serial protocol.
- 1-WIRE interface
Reader supports Read_ROM and Search_ROM commands. Family code is ‘1’ by default and can be optionally changed. Single code mode and multiple code mode(DS1990 compatibility) can be set.
In 1-WIRE mode, LEDs and buzzer are control by wires by pulling it to LOW.
