DUT-E specifications
SK DUT-E is designed for configuring fuel level sensors DUT-E AF, DUT-E 232, DUT-E 485, DUT-E CAN and for transferring the information between PC and fuel level sensors DUT-E AF, DUT-E 232, DUT-E 485, DUT-E CAN.

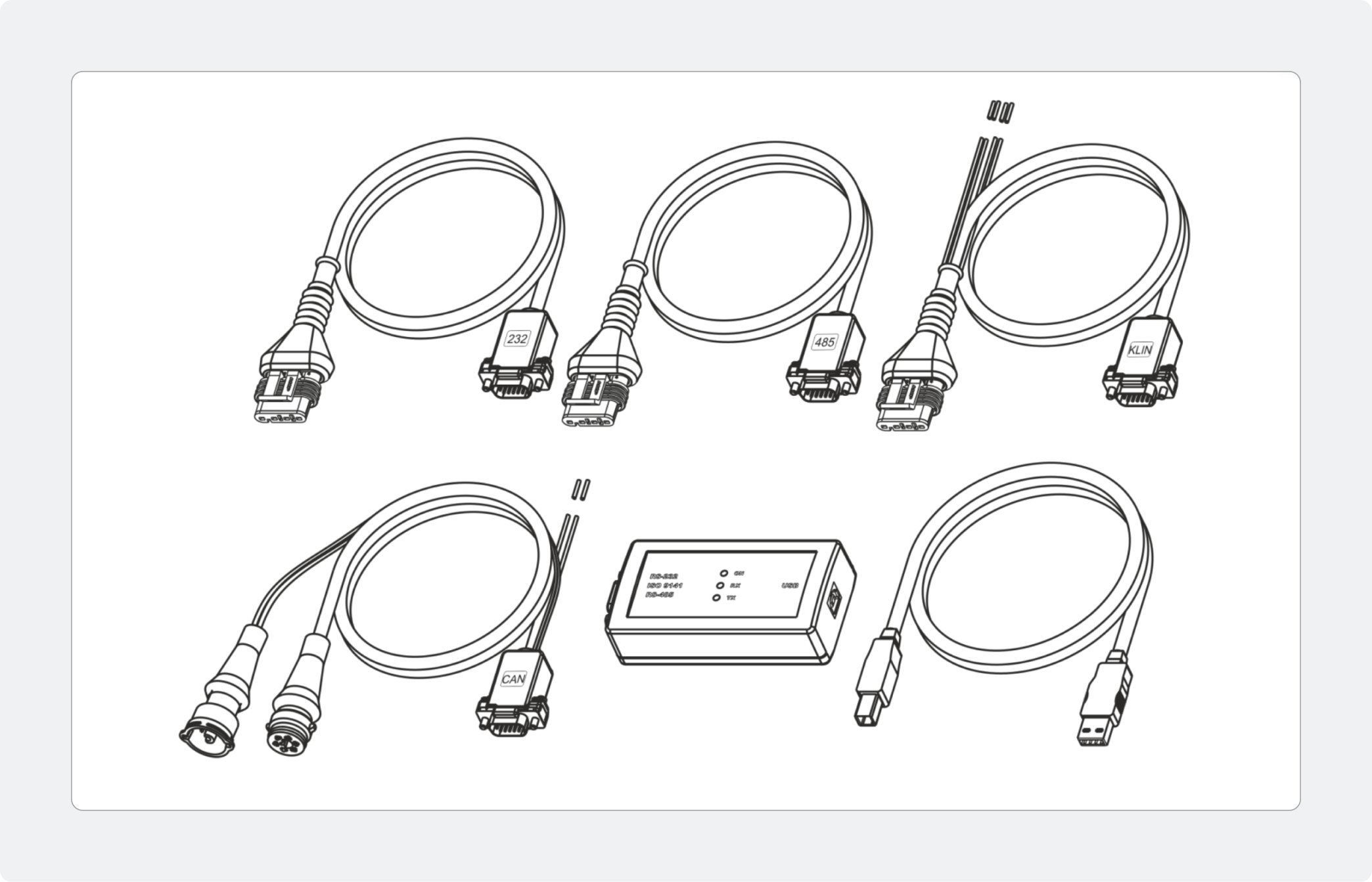

Delivery set
| Description | Quantity, pcs | Description | Quantity, pcs |
| Specification | 1 | АF service cable | 1 |
| Service Adapter | 1 | RS-232 service cable | 1 |
| USB A-B cable | 1 | RS-485 service cable | 1 |
| CAN service cable | 1 |
Service DUT-E software and USB driver software can be downloaded at: https://jv-technoton.com/software-firmware
Cables
USB A-B cable is used to connect Universal Service Adapter to PC.
AF service cable pinout scheme
| View | Pin | Designation | Color | Name | Type |
| 1 | VBAT | Orange | Supply voltage | Analog 10...32 V | |
| 3 | KLIN | Black | K-Line | ISO 9141 | |
| 6 | GND | Brown | Ground | - | |
| 7 | GND | Brown | Ground | - | |
| 12 | SEL2 | Brown | Ground | Discrete | |
| 1 | VBAT | Orange | Supply voltage | Analog 10...32 V | |
| 2 | GND | Brown | Ground | - | |
| 1 | VBAT | Orange | Supply voltage | Analog 10...32 V | |
| 2 | GND | Brown | Ground | - | |
| 3 | KLIN | Black | K-Line | ISO 9141 | |
| 4 | T034 | White | Fuel level | Analog 0...9 V |
RS-232 service cable pinout scheme
| View | Pin | Designation | Color | Name | Type |
| 4 | 232Т | Red | Transmitted data | Digital, RS-232 | |
| 5 | 232R | White | Received data | Digital, RS-232 | |
| 6 | GND | Brown | Ground | ||
| 14 | VBAT | Orange | Supply voltage | Analog 10...50 V | |
| 1 | VBAT | Orange | Supply voltage | Analog 10...50 V | |
| 2 | GND | Brown | Ground | ||
| 3 | 232R | White | Received data | Digital, RS-232 | |
| 4 | 232T | Red | Transmitted data | Digital, RS-232 |
RS-485 service cable pinout scheme
| View | Pin | Designation | Color | Name | Type |
| 6 | GND | Brown | Ground | - | |
| 7 | GND | Brown | Ground | - | |
| 10 | 485В | Red | Transmitted data | Digital, RS-485 | |
| 11 | SEL1 | Brown | Select RS-485 | Discrete | |
| 14 | VBAT | Orange | Supply voltage | Analog 10...50 V | |
| 15 | 485А | White | Received data | Digital, RS-485 | |
| 1 | VBAT | Orange | Supply voltage | Analog 10...50 V | |
| 2 | GND | Brown | Ground | - | |
| 3 | 485А | White | Received data | Digital, RS-485 | |
| 4 | 485В | Red | Transmitted data | Digital, RS-485 |
CAN service cable pinout scheme
| View | Pin | Designation | Color | Name | Type |
| 1 | VBAT | Orange | Supply voltage | Analog 10...32 V | |
| 3 | KLIN | Black | K-Line | ISO 9141 | |
| 6 | GND | Brown | Ground | - | |
| 7 | GND | Brown | Ground | - | |
| 12 | SEL2 | Brown | Select K-Line | Discrete | |
| 1 | VBAT | Orange | Supply voltage | Analog 10...32 V | |
| 2 | GND | Brown | Ground | - | |
| 1 | VBAT | Orange | Supply voltage | Analog 10...32 V | |
| 2 | GND | Brown | Ground | - | |
| 5 | KLIN | Black | K-Line | ISO 9141 |
