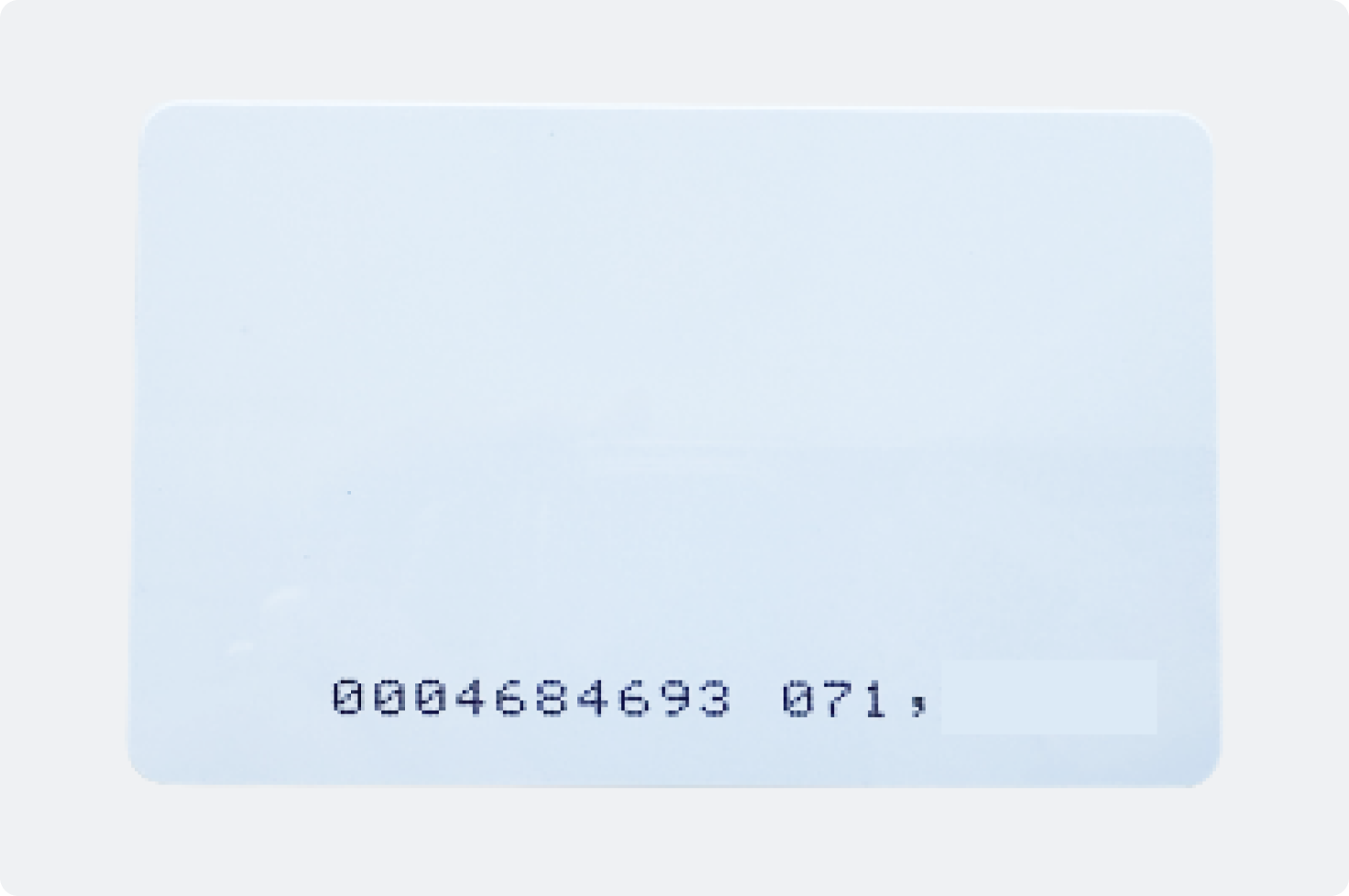

RFID card

Features

• Written ID, to be read by Fleet Complete RFID reader. '
• ID and Barcode (code128) printed on the card.

MIFARE, RF Interface (ISO, IEC 14443 A)

• Contactless transmission of data and supply energy (no battery needed)
• Operating distance: Up to 100mm (depending on antenna geometry)
• Operating frequency: 13.56 MHz
• Data transfer: 106 kbit/s
• Data integrity: 16 Bit CRC, parity, bit coding, bit counting.
• Anti-collision
• Typical ticketing transaction: <100 ms (including backup management)

EEPROM

• 1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte)
• User definable access conditions for each memory block
• Data retention of 10 years
• Write endurance 100.000 cycles

Security

• Mutual three paмss authentication (ISO/EC DIS 9798-2)
• Individual set of two keys per sector (per application) to support multi-application with key hierarchy
