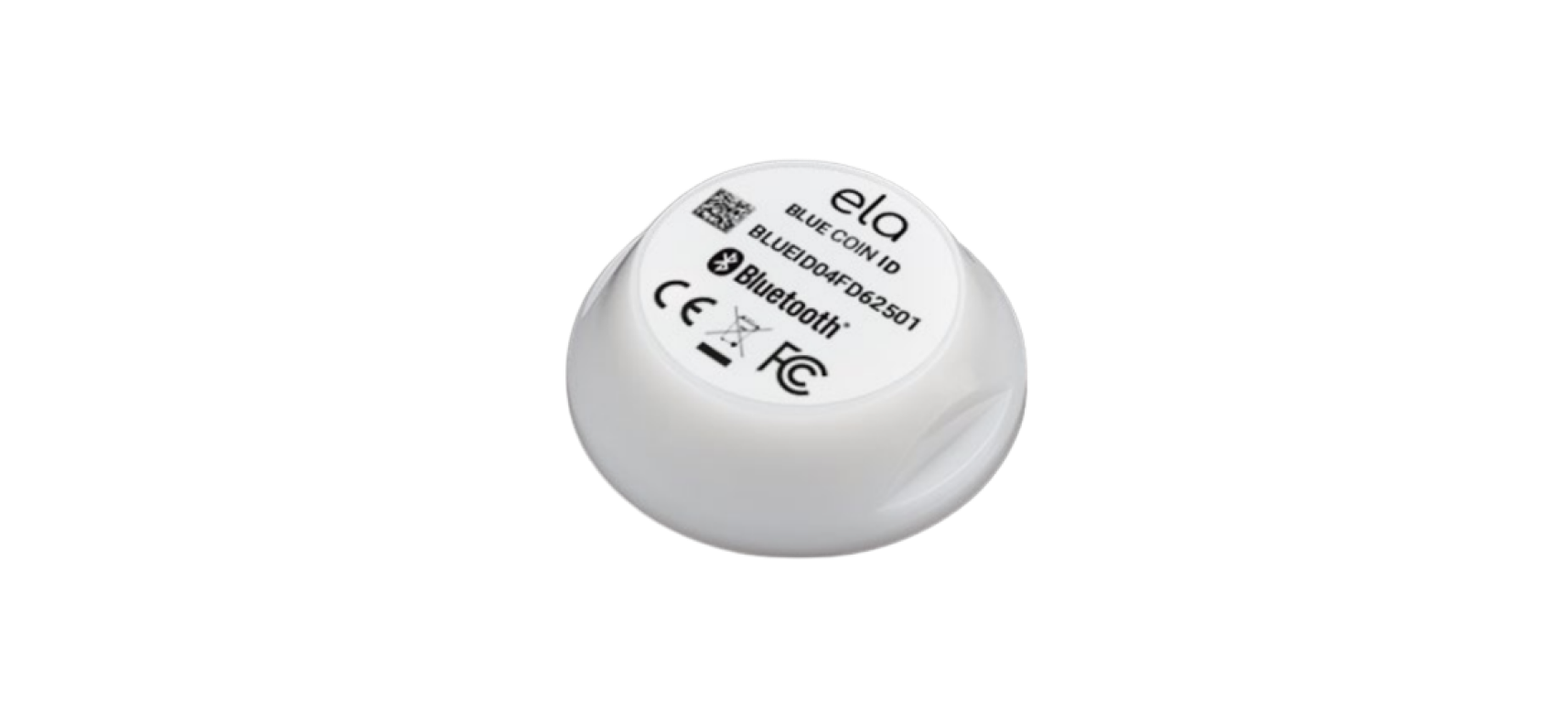

Bluetooth tag small is Industrial bluetooth low energy beacon. Adapted to harsh industrial environments, combining robustness, compactness and longevity, the Bluetooth beacon Bluetooth PUCK ID, equipped with Bluetooth technology, is the ideal product for equipment identification (Trailers, Assets, Containers). This beacon adapts to harsh industrial environments while ensuring a transmission range of up to 100m and a very high autonomy 5 up to years.
Benefits
- High autonomy: up to 5 years
- Pick to light: integrated high power LED
- Waterproof (IP68)
- Smart & secure programming by NFC
- Over The Air Programming (OTAP)
Technical specifications
Operating mode
| Frequency | 2.4 GHz - Bluetooth Low Energy 4.0/4.2 |
| Output power | Up to +4 dBm (configurable) |
| Range | Up to 200 meters in open field (+4dBm) |
| Transmission period | Advertising period (0,1 sec to 10 sec – configurable in seconds) |
| Radio frame format | Identifier: 15 characters max (15 bytes) Compatible: ID (ELA), iBeacon (Apple) and Eddystone (Google)* *Refer to the frames specification for more information. |
| Settings and configuration | Interface/protocol : NFC (Type 2) |
| Connected mode | LED indicator (ON / OFF) command / Battery level |
| Advertising mode | Periodic transmission of identifier data (beacon mode) |
Battery
| Power supply | 3 VDC – Internal lithium battery |
| Battery life | ID (ELA) : 5 years, iBeacon (Apple) : 5 years, Eddystone (Google) : 5 years* *Refer to the battery life curves for more information. |
| Battery level | Low battery warning in advertising frames (<15%) Battery voltage in scan response frames (configurable) |
Certifications
| Europe | CE : EN 300 328/EN 300 330 / EN 301 489 / EN 62311 / EN 62368 |
| USA | FCC : FCC PART 15 |
| Canada | ISED : RSS-247/ICES-003 |
| RoHs | Yes |
Housing
| Dimensions | Ø 36mm base – Height 11,5mm |
| Weight | 13g |
| Materials | DELRIN (POM C) Compatible with food products (90/128/EEC) |
| Waterproof grade | IP 68 |
| Operating temperature | -30°C to +70°C |
Accessories
| Tag support | COIN HOLDER STICKER (ACIOM92C) COIN HOLDER (ACIOM91) COIN STICKER (ACIOM187) 3M PT1100 - Ø 34mm – Thickness: 1,1mm |
