Electric vehicles

Electric vehicles charging data in FC+ platform

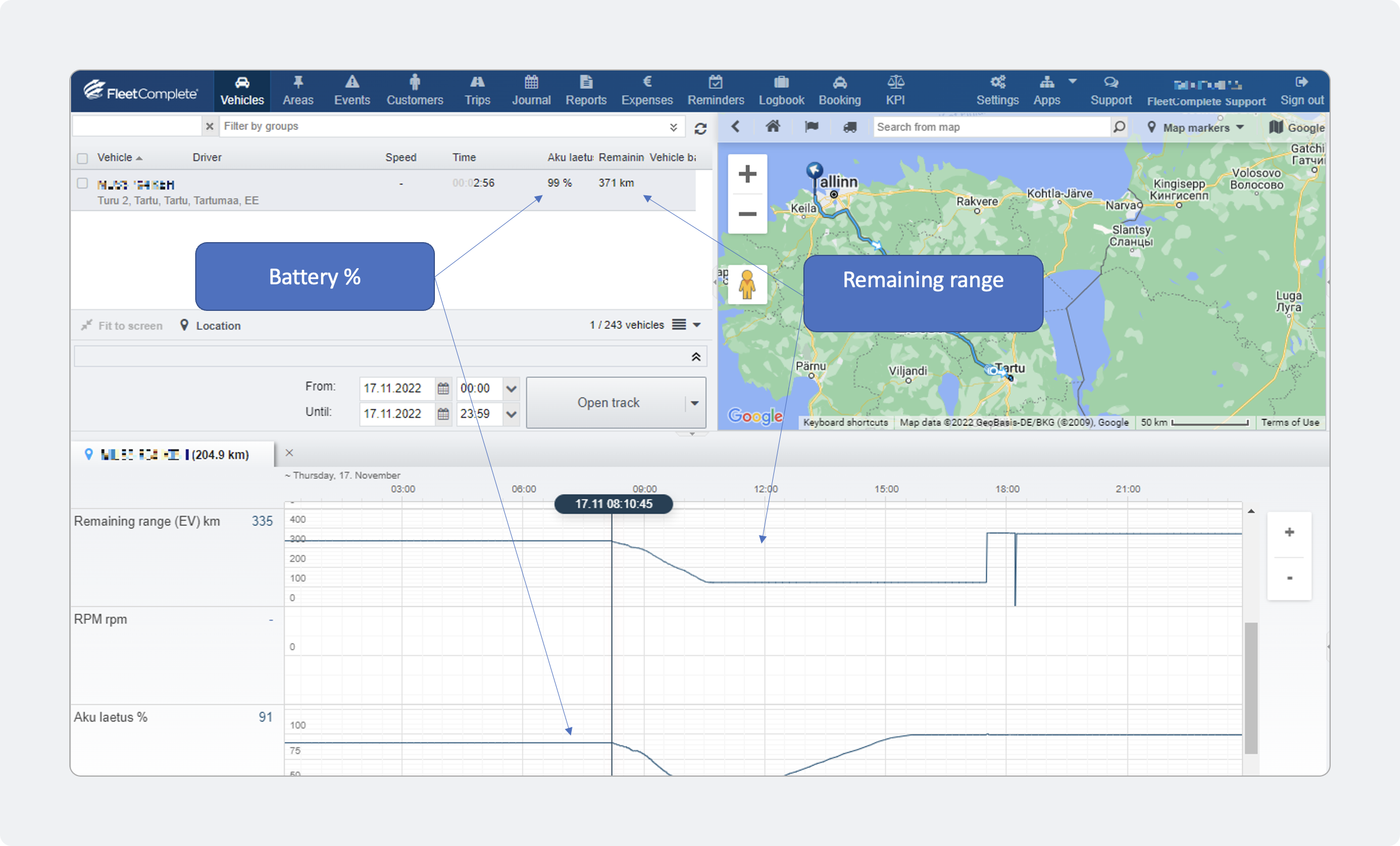

The FC+ Vehicles module allows to track electric vehicle (EV) battery levels and remaining driving range in real time. For electric vehicles, it displays vehicle details, including:

  • Aku laetus (Battery percentage %)– Indicates the current charge level of the vehicle.
  • Remaining Range (km) – Shows the estimated distance the vehicle can travel before requiring a charge.

Reports

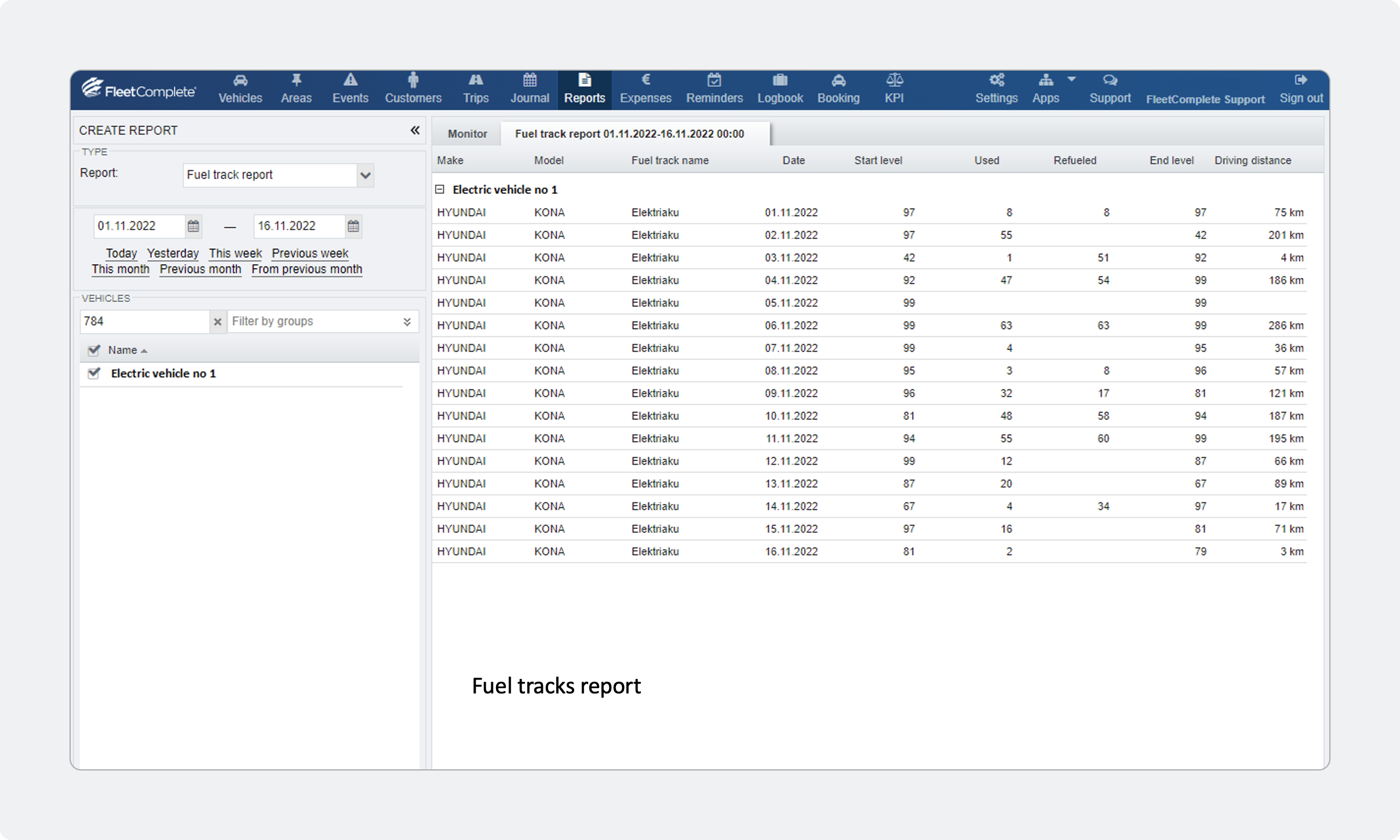

The Fuel Track Report provides insights into fuel consumption and refueling events for vehicles. Each row in the report provides essential data for an electric vehicle, including:

  • Make & Model – Displays the vehicle manufacturer and model.
  • Fuel Track Name – Indicates the fuel type used by the vehicle (e.g., Elektriaku for electric vehicle).
  • Date – The date when the trip was recorded.
  • Start Level (%) – The battery charge level at the start of the trip.
  • Used (%) – The percentage of battery consumed during the trip.
  • Refueled (%) – The percentage of battery charge replenished during or after the trip.
  • End Level (%) – The battery charge level at the end of the trip.
  • Driving Distance (km) – The total distance traveled during the recorded trip.

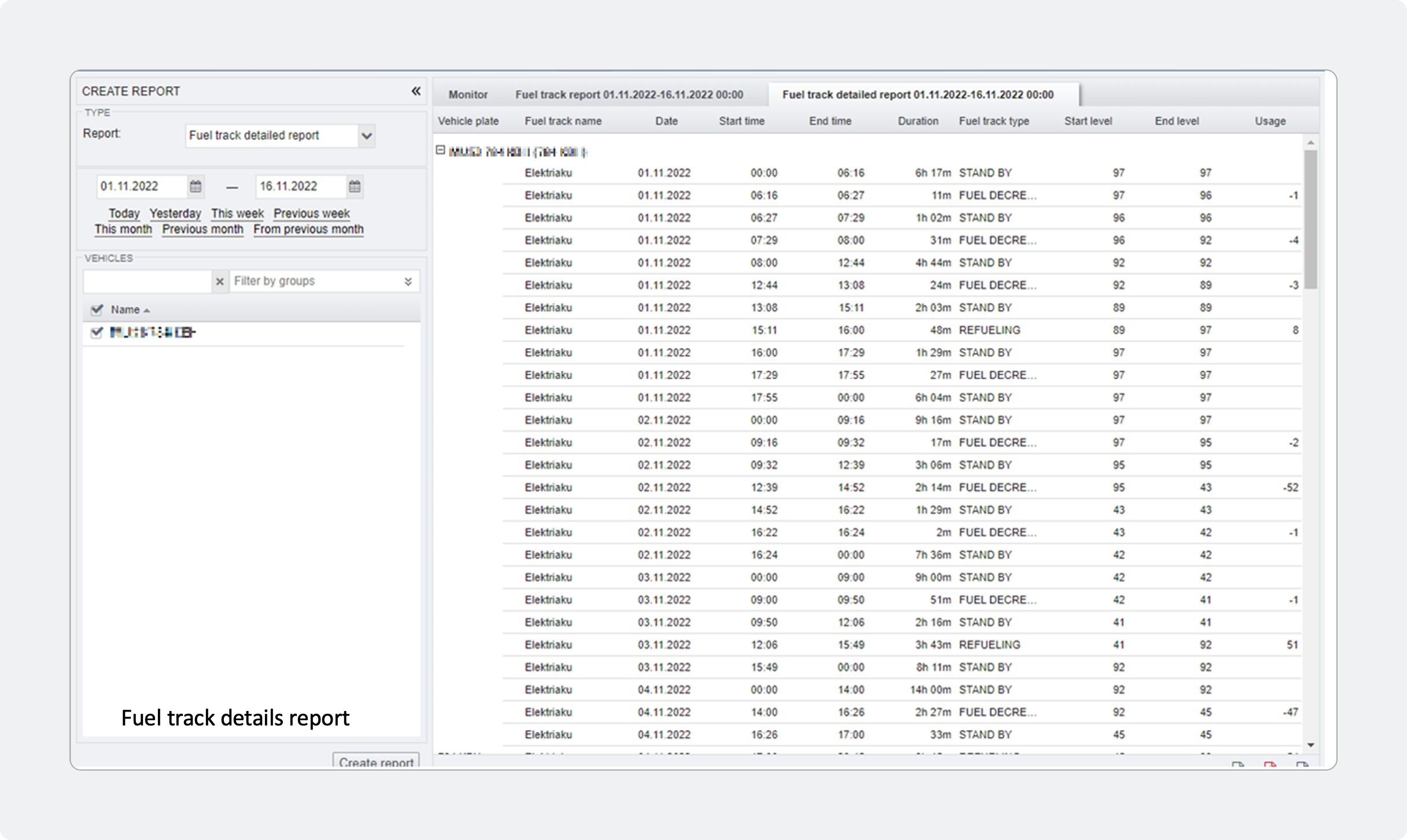

The Fuel Track Detailed Report provides a breakdown of battery usage event for a selected vehicle. It tracks the duration, refueling events, and energy consumption.

  • Vehicle Plate – Identifies the vehicle.
  • Fuel Track Name – Specifies the type of fuel (e.g., "Elektriaku" for electric battery).
  • Date – Displays the date of the recorded event.
  • Start Time – Indicates when the event began.
  • End Time – Indicates when the event ended.
  • Duration – Shows the total time the event lasted.
  • Fuel Track Type – Displays the type of activity (STAND BY, FUEL DECREASE, REFUELING).
  • Start Level (%) – Shows the battery percentage at the start of the event.
  • End Level (%) – Displays the battery percentage at the end of the event.
  • Usage (%) – Represents the amount of battery consumed (-) or replenished (+).

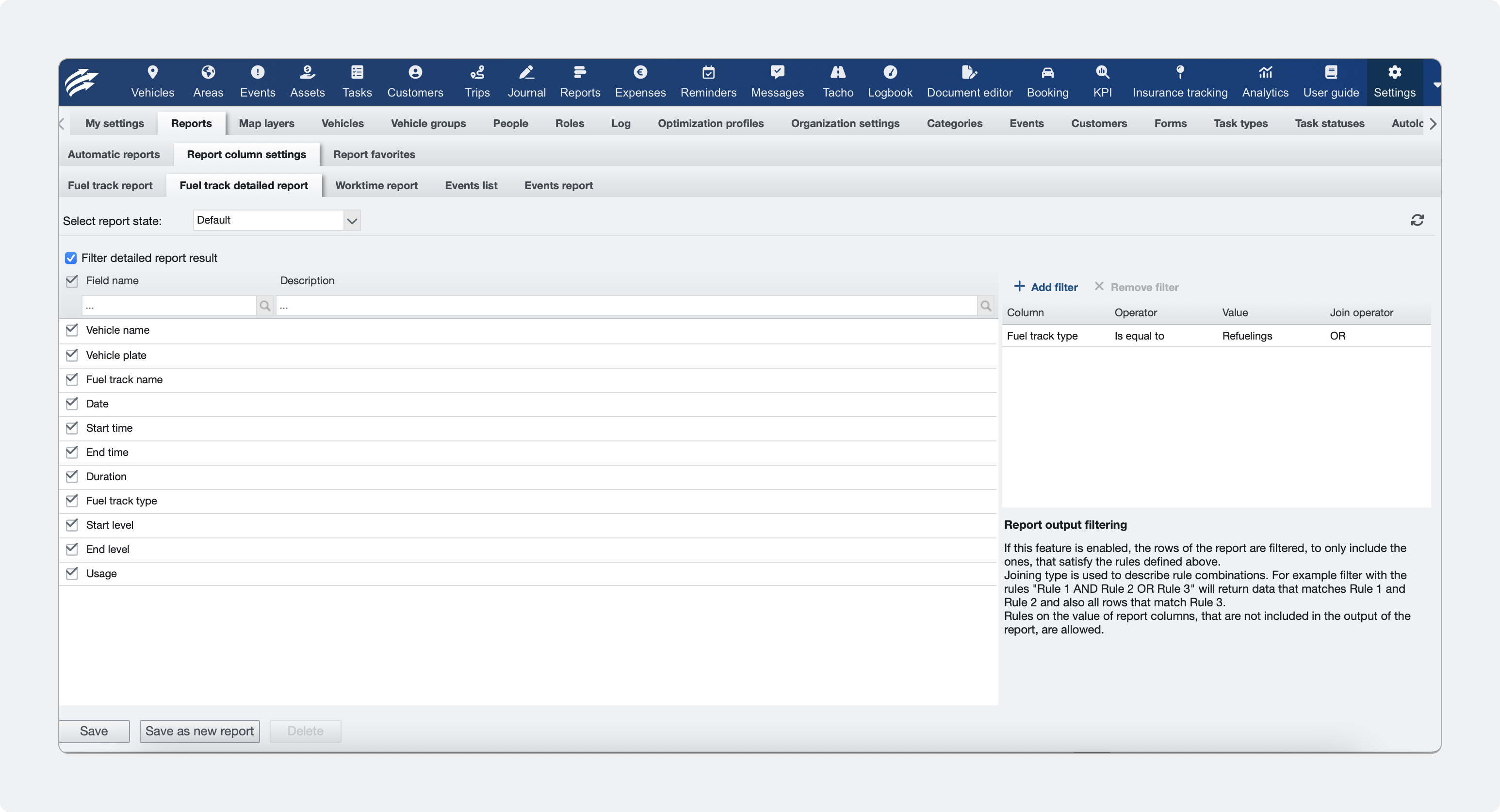

Setup filter to Fuel track detailed report to see only recharging

To see only recharging in Fuel track detailed report follow the steps below:

  1. Go to the Settings -> Reports tab -> Report column settings.
  2. Open Fuel track detailed report.
  3. Enable filtering by ticking the box near Filter detailed report result.
  4. Click on Add filter on the right of the screen and fill the next information:
  • Column – Fuel track type
  • Operator –  Is equal to
  • Value – Refuelings
  • Join operator - AND or OR

5. To save new report settings click on the Save as new report button.

How to choose join operator

When there is only one filter, the Join operator has no effect. It does not matter whether AND or OR is used.

If more filters are added, the operator determines how conditions are evaluated:

  • Filter 1 AND Filter 2 → Both conditions must be met.
  • Filter 1 OR Filter 2 → At least one condition must be met.
